图片仅供参考 - 请查看制造商规格

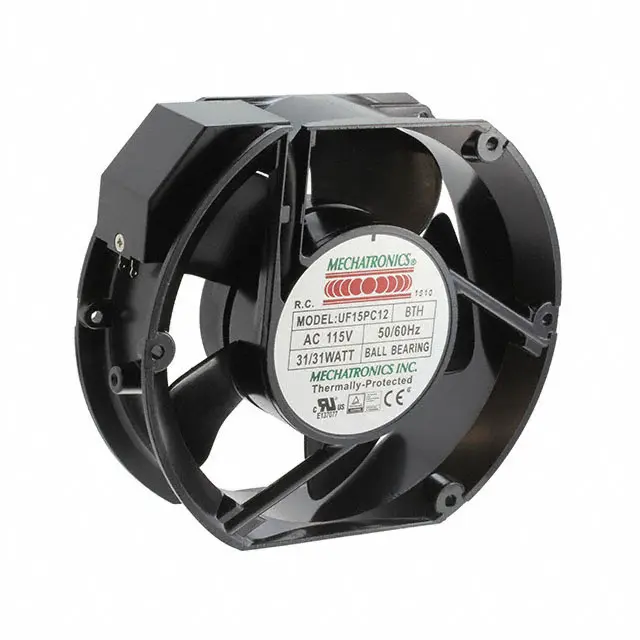

UF15PC12-BTHR
Fan Tubeaxial - 115VAC - 0.250A - Rectangular/Rounded 172mm L x 150mm H - Ball - 226.0 CFM (6.33m³/min) - 3400 RPM - 58.0 dB(A) - 2 Terminals.
符合 RoHS
Case 包装
合规证书
描述
The UF15PC12-BTHR is fan with aluminum frame and polybutylene terephthalate (PBT) blade. This fan has permanent split capacitor motor and thermal overload protector (TOP) protection. Operating temperature range is from: -40 to 158°F (-40 to 70°C).
搜索关键词: UF15PC12BTHR
规格
产品属性
属性值
选择属性
找到的产品: 0
供应商:
Mechatronics
部件编号:
UF15PC12-BTHR
计量单位:
每 Each
RoHS:
Yes
HTS:
8414596590
COO:
TW
ECCN:
EAR99
供应商标准包装:
1
封装类型:
Case
有存货: 663
可立即发货
工厂交货期 26 周
价格 (USD)
数量
单价
1
$50.71
5
$50.21
10
$44.24
25
$36.73
50
$34.62
100
$32.25
250
+
$32.17
数据表
