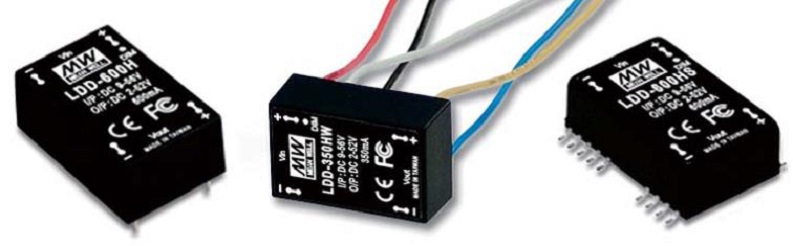

LDD-700H by mean well
Image is representational - see mfr. specs

LDD-700H

MEAN WELL

DC/DC Step down LED driver Constant Current (CC) - Input 9-56Vdc - Output 0.7A at 2-52VDC - PCB mount through hole - Dimming with PWM and remote ON/OFF. ...

产品说明书
符合 RoHS 规定
包装
附件
Request Programming Quote
Discontinued & Replaced
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

描述

LDD-700H is DC/DC step-down converter with output voltage from 2 to 52VDC at fixed current 700mA. In this converter is built-in EMI filter, comply with EN55015 and FCC part 15 without additional input filter and capacitors. LDD-H series are cooling by free air converction and has short circuit and over temperature protection. LDD-700H has a 3 year factory warranty.

Search Keywords: LDD700H

规格

Product Attribute
Attribute Value
Select Attribute
Products found: 0
供应商:
MEAN WELL
部件编号:
LDD-700H
计量单位:
Per Each
RoHS:
Yes
HTS:
8504409580
COO:
TW
ECCN:
EAR99
供应商标准包装: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Input/Output Type:
DC/DC
Style:
Module
Type:
Constant Current
Output Type:
Fixed, Dimmable
Dimming:
PWM
Maximum Output Power:
Not Specified
Output Voltage Range:
2 to 52 VDC
Maximum Output Current:
700 mA (0.7 A)
Minimum AC Input Voltage:
Not App
Maximum AC Input Voltage:
Not App
Minimum DC Input Voltage:
9
Maximum DC Input Voltage:
56
Termination Style:
Pin
Input Connector Type:
PC Pins
Output Connector Type:
PC Pins
Operating Temperature:
-40 to 85 °C
Safety Agency Approvals:
CE, EAC
IEC Class:
None
SELV:
No
LPS:
No
Warranty:
3 Years
Family:
LDD-700
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

有存货: 1

可立即发货

Buy all 1 in-stock or the regular minimum order quantity of 3

Stock lot only: 1

Minimum Order Quantity: 3

数量
Unit Price
1
$11.429
3
$10.390
10
$8.050
20
$7.060
50 +
$6.520
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments
建议的换货
NLDD-700H
NLDD-700H
VIEW PRODUCT

Tools/3D Models

产品指南

Product Changes
