Image is representational - see mfr. specs
HLG-320H-12
MEAN WELLAC/DC LED Pwr Sply - Const Curr/Volt - 264W - Fixd: 12 Vdc @ 22,000mA (22.0 A) - Dim: No
符合 RoHS 规定
Certificate of Compliance Guarantee
描述
AC-DC Single output LED driver Mix mode (CV+CC) with built-in PFC; Output 12Vdc at 22A; IP67; Cable output. It has a rated power of 264W and can work up to 90°C temperature. Dimensions are Width 90 mm, Height 43.8 mm, and Depth 252 mm.
Search Keywords: HLG320H12
规格
Product Attribute
Attribute Value
Select Attribute
Products found: 0
供应商:
MEAN WELL
部件编号:
HLG-320H-12
计量单位:
Per Each
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
供应商标准包装:
1
Input/Output Type:
AC/DC8097
Style:
Enclosed
Type:
Constant Current/Voltage
Output Type:
Fixed
Dimming:
No
Maximum Output Power:
264 W
Output Voltage Range:
6.0 to 12.0 Vdc
Maximum Output Current:
22,000 mA (22.0 A)
Minimum AC Input Voltage:
90
Maximum AC Input Voltage:
305
Minimum DC Input Voltage:
127
Maximum DC Input Voltage:
431
Termination Style:
Wire Leads
Input Connector Type:
Stripped and Tinned
Output Connector Type:
Stripped and Tinned
Operating Temperature:
-40 to 90 °C
Safety Agency Approvals:
CB, CCC, CE, cRUus, PSE, RCM, TUV
IEC Class:
None
SELV:
Yes
LPS:
No
Warranty:
7 Years
Family:
HLG-320H
有存货: 752
Ships today, if you order in
工厂交货期 16 周
数量
Unit Price
1
$96.10
5
$91.60
10
$87.50
20
+
$85.00
Please Note:
Tariffs may apply for U.S. shipments
Tools/3D Models
产品说明书
Component Moment Extended Cut: Mean Well LED LIGHTING
Learn more about MEAN WELL LED Driver
CUSTOMERS
ALSO BOUGHT
LPV-60-12
AC/DC LED Power Supply - Const Volt - 60W - Fixed: 12 Vdc @ 5,000mA - Dim: No

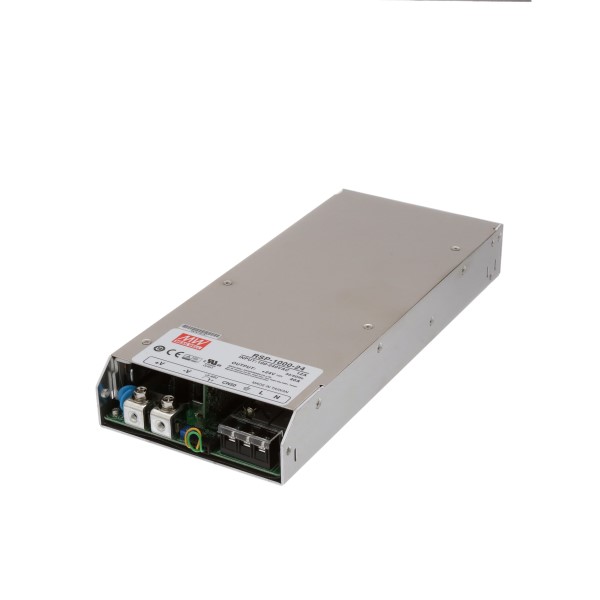

RSP-1000-24
