描述

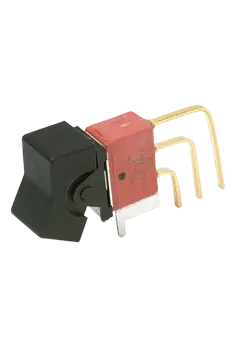

E101J2V3QE2 is a sealed miniature rocker switch featuring single-pole double-throw (SPDT) functionality designed for applications requiring environmental protection against solder and cleaning process contaminants. The switch incorporates a vertical right-angle PC thru-hole termination with 0.150" pitch spacing and is constructed with rocker, case, and bushing materials rated UL 94V-0 for flame resistance. Key electrical characteristics include a contact rating of 7.5 amperes at 125V AC or 28V DC, contact resistance below 10 mO typical at 2-4V DC with 100 mA, and an electrical life of 40,000 make-and-break cycles at full load. The switch provides 1000 Vrms minimum dielectric strength and 10? O minimum insulation resistance, with ESD protection rated to 15,000V DC. This sealed design makes it ideal for telecommunications, instrumentation, and computer peripheral applications where reliability and protection from environmental contaminants are essential.
搜索关键词: E101J2V3QE2
规格
常见问题
E101J2V3QE2 是否符合 RoHS 标准？
是的，E101J2V3QE2 符合 RoHS 标准。
E101J2V3QE2 的交货期是多少？
E101J2V3QE2 的标准交货期约为 8 周。有库存的数量由 Master Electronics 发货。
有存货: 29
可立即发货
库存数量的起订量: 20
缺货数量的起订量: 20
工厂交货期 8 周
Product Drawing
数据表
