APD-2CP-K2 by itt cannon

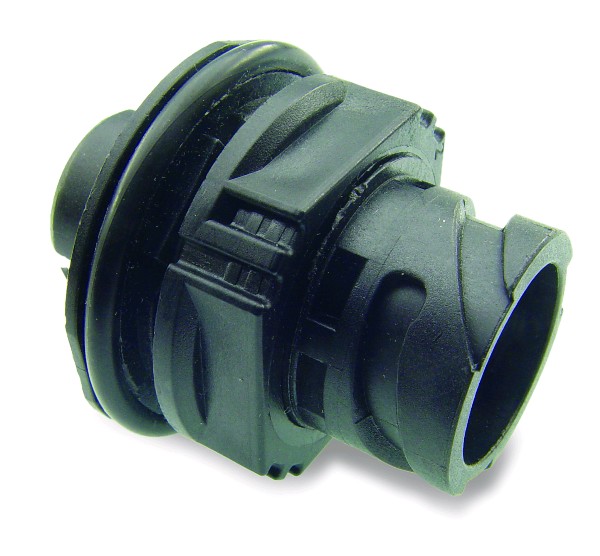

Image is representational - see mfr. specs

APD-2CP-K2

ITT CANNON

Grey, 4-way APD Jam Nut Receptacle, ...

产品说明书
符合 RoHS 规定
包装
附件
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

描述

The ITT CANNON part 121583-0009 is a versatile and reliable 4-way APD Jam Nut Receptacle. Designed with a durable grey housing, this receptacle ensures excellent performance in various industrial and commercial applications. Its jam nut design provides secure and stable connections, making it suitable for demanding environments. Trust in the ITT CANNON 121583-0009 for exceptional connectivity and dependable results.

Search Keywords: APD2CPK2

规格

Product Attribute
Attribute Value
Select Attribute
Products found: 0
供应商:
ITT CANNON
部件编号:
APD-2CP-K2
计量单位:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
DE
ECCN:
EAR99
供应商标准包装: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Contact Resistance:
5 mΩ max
Durability Rating:
50 Mating Cycles
Static Load, Mated Connector:
250 N axial, 150 N lat. (ISO 15170-2, Sec. 4.5)
Operating Current:
see derating curve (catalog)
Connector Type:
Jam Nut Receptacle
Coupling Torque:
1,2 Nm max
Static Load, Free Connector:
350 N (ISO 15170-2, Sec. 4.6)
Series:
APD 4-way
Temperature Range:
-40 °C up to 140 °C (ISO 15170-2, Sec. 6.4), 30g
Housing Material:
PBT GF
Salt Spray:
96 h, 35 °C (ISO 15170-2, Sec. 6.2)
Industrial Climate:
SO2, 0,67 %
Sealing:
IP 67 (DIN EN 60529)
Coding (Mechanical Keying And Visual Color Coding):
Code 2 - grey (RAL 7036)
Coupling Nut Material:
PA 66 GF
Operating Voltage:
48 VDC
Vibration Resistance:
Sine, 300 m/s², 3 x 100h, RT and 120°C (ISO 15170-2)
Fluid Compatibility:
Brakefluid, ATF, fuel, .. (ISO 15170-2, Sec. 6.6)
Gender:
Pin
Voltage Proof:
1000 VAC, 60 seconds
Insulator Resistance:
10 MΩ min.
Humidity Range:
up to 95 %
Sealing Material:
HNBR (alternative FKM)
  Possible Replacement options available.  See Alternatives

有存货: 0

缺货数量的起订量: 125

工厂交货期 10 周

数量
Unit Price
125
$11.54
250
$7.10
375
$5.62
500 +
$5.51
Log in for special pricing Click for Quote Price Match Request
Possible Replacement
121583-0009
