APD-1SPH8-2

ITT CANNON

The APD-1SPH8-2 is a 2-way, high-power, snap-in receptacle connector for robust power applications. ...

产品说明书
符合 RoHS 规定
包装
附件
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

描述

The APD-1SPH8-2 is a 2-way, high-power snap-in receptacle from the Cannon APD series, designed in compliance with ISO 15170 standards. This connector operates at 48 VDC with a maximum contact resistance of 2 mΩ and a voltage proof of 1000 VAC. It is engineered for durability, rated for 50 mating cycles, and features an IP67 sealing rating for protection against dust and water ingress. The device operates reliably across a wide temperature range of -40 °C to 125 °C. Its robust construction, with a PBT GF housing and silver-plated copper alloy contacts, makes it suitable for demanding applications in industrial, transportation, and off-road vehicle environments.

Search Keywords: APD1SPH82

规格

Product Attribute
Attribute Value
Select Attribute
Products found: 0
供应商:
ITT CANNON
部件编号:
APD-1SPH8-2
计量单位:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
DE
ECCN:
EAR99
供应商标准包装: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Humidity Range:
up to 95 %
Static Load:
350 N (ISO 15170-2, Sec. 4.6)
Fluid Compatibility:
Brakefluid, ATF, fuel, .. (ISO 15170-2, Sec. 6.6)
Operating Voltage:
48 VDC
Sealing Material:
HNBR (alternative FKM)
Operating Current:
see derating curve (catalog)
Temperature Range:
-40 °C up to 125 °C (ISO 15170-2, Sec. 6.4)
Durability Rating:
50 Mating Cycles
Coupling Nut Material:
PA 66 GF
Coupling Torque:
2 Nm max
Coding (Mechanical Keying And Visual Color Coding):
Code 1 - black (RAL 9005)
Connector Type:
Snap-In Receptacle
Series:
APD High Power 2-way
Vibration Resistance:
Sine, 100 m/s², 3 axis, 24h, RT (EN 60512)
Contact Resistance:
2 mΩ max
Housing Material:
PBT GF
Voltage Proof:
1000 VAC, 60 seconds
Sealing:
IP 67 (DIN EN 60529)
Insulator Resistance:
10 MΩ min.
Salt Spray:
96 h, 35 °C (ISO 15170-2, Sec. 6.2)
Gender:
Pin
Industrial Climate:
SO2, 0,67 %
  Possible Replacement options available.  See Alternatives

有存货: 0

缺货数量的起订量: 125

工厂交货期 12 周

数量
Unit Price
125
$12.51
250
$7.70
375
$6.09
500 +
$5.97
Log in for special pricing Click for Quote Price Match Request
Possible Replacement

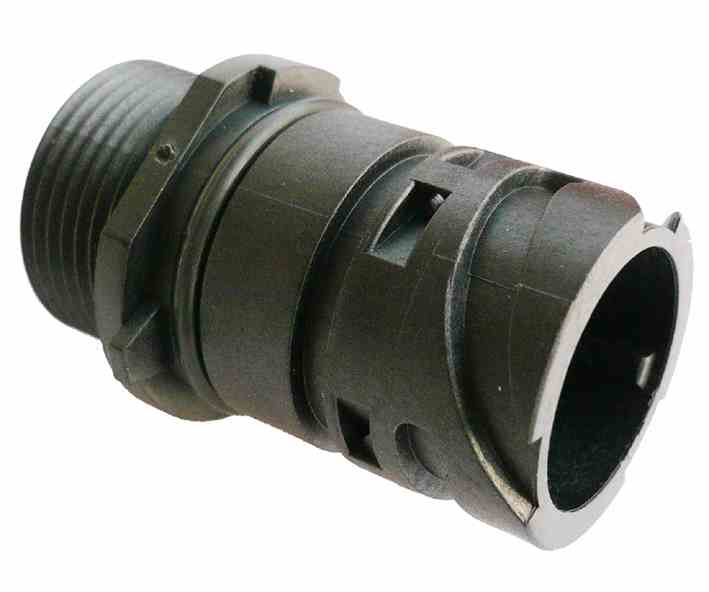

249-8619-007
