描述

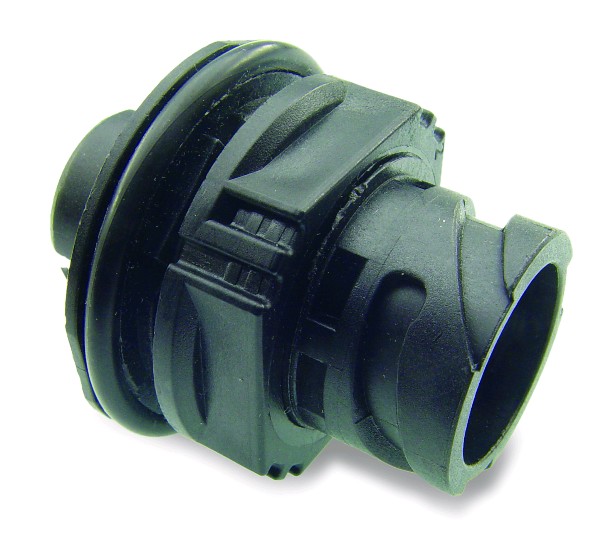

The 121583-0085 is a high-power jam nut receptacle connector with 2-way configuration, part of the Cannon APD series compliant with ISO 15170 standards. This connector features a PG 16 thread with dimensions of 38 mm length and 23.5 mm diameter, incorporating pin crimp contacts and a jam nut design suitable for wall thicknesses of 1.0 to 4.0 mm. The housing is constructed from PBT GF (polybutyrene terephthalate glass-filled), with HNBR sealing parts and copper alloy contacts plated with silver, ensuring excellent corrosion resistance and electrical performance. The connector is rated for IP 67 and IP 69K sealing protection, operates reliably in temperatures up to 120°C, and demonstrates vibration resistance of 200 m/s² across 3 axes for 100 hours. This connector is ideal for high-power applications in military, aerospace, industrial instrumentation, and oil & gas environments where reliable, sealed electrical connections are critical.
搜索关键词: APD1CPH8212
规格
常见问题
APD-1CPH8-2-12 是否符合 RoHS 标准？
是的，APD-1CPH8-2-12 符合 RoHS 标准。
APD-1CPH8-2-12 的交货期是多少？
APD-1CPH8-2-12 的标准交货期约为 10 周。有库存的数量由 Master Electronics 发货。
有存货: 541
可立即发货
最小订购数量: 5
工厂交货期 10 周
数据表
Component Moment: ITT APD series
Learn more about ITT Cannon APD Connector Series
