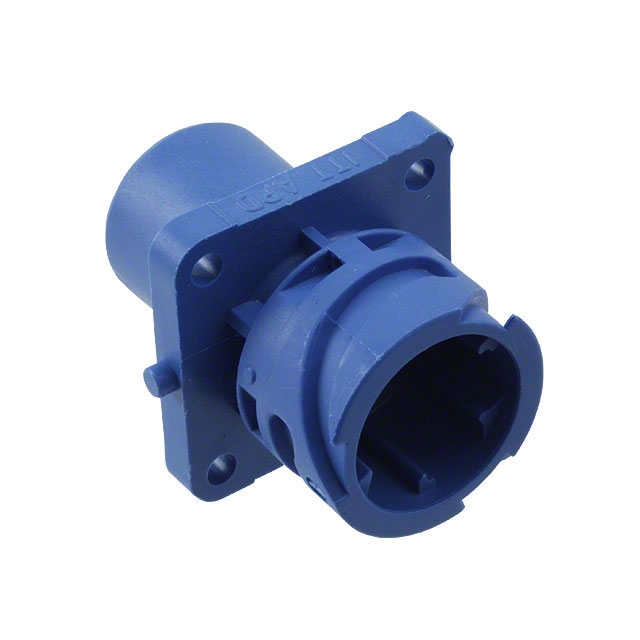

Image is representational - see mfr. specs
APD-14AP7EP
ITT CANNONFlange Receptacle, for pres s -in C ontac ts, 7-way , Blue
符合 RoHS 规定
Certificate of Compliance Guarantee
描述
Flange Receptacle, for pres s -in C ontac ts, 7-way , Blue
Search Keywords: APD14AP7EP
规格
Product Attribute
Attribute Value
Select Attribute
Products found: 0
供应商:
ITT CANNON
部件编号:
APD-14AP7EP
计量单位:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
DE
ECCN:
EAR99
供应商标准包装:
100
Salt Spray:
96 h, 35 °C (ISO 15170-2, Sec. 6.2)
Durability Rating:
50 Mating Cycles
Insulator Resistance:
10 MΩ min.
Coupling Torque:
1,2 Nm max
Connector Type:
Flange Receptacle
Voltage Proof:
1000 VAC, 60 seconds
Temperature Range:
-40 °C up to 125 °C (ISO 15170-2, Sec. 6.4)
Series:
APD 7-way
Contact Type:
for Press-in contacts
Humidity Range:
up to 95 %
Operating Voltage:
48 VDC
Dynamic Impact:
2 J (49mm- ball- drop- test, height 400mm)
Fluid Compatibility:
Brakefluid, ATF, fuel, .. (ISO 15170-2, Sec. 6.6)
Housing Material:
PBT GF
Contact Resistance:
5 mΩ max
Sealing:
IP 67 (DIN EN 60529)
Coupling Nut Material:
PA 66 GF
Gender:
Pin
Coding (Mechanical Keying And Visual Color Coding):
Code 1 - blue (RAL 5012)
Static Load:
350 N (ISO 15170-2, Sec. 4.6)
Sealing Material:
HNBR (alternative FKM)
Vibration Resistance:
Sine, 200 m/s², 3 x 100h, RT and 120°C (ISO 15170-2)
Operating Current:
see derating curve (catalog)
Industrial Climate:
SO2, 0,67 %
Possible Replacement options available. See Alternatives
有存货: 0
缺货数量的起订量: 125
工厂交货期 12 周
数量
Unit Price
125
$24.69
250
$13.08
375
$9.20
500
+
$9.02
产品说明书
Learn more about ITT Cannon APD Connector Series
