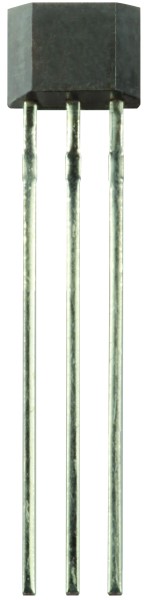

SS449R by honeywell
Image is representational - see mfr. specs

SS449R

Honeywell

Honeywell Hall-effect Digital Position Sensor ICs: SS440R Series,Unipolar Hall-effect sensor IC, Flat TO-92package, Low sensitivity, Bulk packaging 1000 units per bag ...

产品说明书
符合 RoHS 规定
包装
附件
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

描述

The Honeywell Hall Effect Sensor SS449R features a built-in reverse polarity protection for safety from potential damage during installation. This magnetic sensor comes with a low voltage 3 V capability to reduce power consumption. It varies its output voltage in response to a magnetic field. The embedded thermally balanced integrated circuit provides stable operation over a wide temperature range of -40 °C to 150 °C.

Hall effect sensors generally operate as analog transducers and return a voltage directly on being triggered by a magnetic field. The Honeywell Sensor SS449R is used in a wide range of industrial and medical applications like medication bin monitor, printer head position sensing, door or lid closure detection, robotic control, speed and RPM sensing in fitness equipment, among others.

Product Highlights:

  • Subminiature package size (SS340RT) supplied on tape and reel
  • Built-in reverse polarity protection
  • Thermally balanced integrated circuit: Provides for stable operation over a wide temperature range of -40 °C to 150 °C [-40 °F to 302 °F]
  • RoHS-compliant materials
  • Simple activation from a single pole and multiple magnetic sensitivities (high, medium and low
  • Low voltage 3 V capability: Helps reduce power consumption

Search Keywords: SS449R

规格

Product Attribute
Attribute Value
Select Attribute
Products found: 0
供应商:
Honeywell
部件编号:
SS449R
计量单位:
Per Each
RoHS:
Yes
HTS:
8542390001
COO:
CN
ECCN:
EAR99
供应商标准包装: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1000
Magnetic Type:
Unipolar
Maximum Output Current:
20 mA
Mounting:
PCB Through Hole
Minimum Magnetic Sensor Release Point:
135 Gs
Maximum Magnetic Sensor Operating Point:
460 Gs
Output Type:
Sink
Output Driver:
NPN
Product Type:
Digital
Dimension:
4.1 x 1.6 x 3 mm
Typical Operating Supply Voltage:
3.8 to 30 V
Termination Type:
PC Pins
Operating Temperature:
-40 to 150 °C

有存货: 12,587

可立即发货

库存数量的起订量: 85

缺货数量的起订量: 85

工厂交货期 5 周

数量
Unit Price
85
$4.21
250
$4.20
500
$4.19
1,250
$4.18
2,500
$2.21
3,750
$1.52
5,000 +
$1.49
Log in for special pricing Click for Quote Price Match Request
Older Equivalent
65SS2
