SS411A by honeywell
Image is representational - see mfr. specs

SS411A

Honeywell

Honeywell Hall-effect Digital Position Sensor ICs: SS400 Series, Temperature compensated bipolar Hall-effect sensor IC, High sensitivity, Flat TO92 package, Straight leads 14,99 mm [0.59 in] long, Available in bulk pack of 1000 units per bag ...

产品说明书
符合 RoHS 规定
BAG 包装
附件
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

描述

The SS411A Hall Effect Sensor from Honeywell comes with a Quad-Hall IC design which minimizes mechanical stress effects. Some of its applications include transportation, industrial and medical applications like motor assemblies, robotics control, speed and RPM sensing, electric window lifts, and convertible roof positions, among others. Hall effect sensors operate as analog transducers and return voltage directly when they are triggered by a magnetic field.

This Honeywell Sensor’s temperature-compensated magnetics provide stable operation over a wide temperature range of -40 °C to 150 °C. It also varies its output voltage in response to a magnetic field.

Product Highlights:

  • Broad supply voltage capability from 3.8 Vdc to 30 Vdc for application flexibility
  • Digital, open collector sinking output for easy interfacing with a variety of common electronic circuits
  • Miniature standard 3-lead plastic package with tape option for automated component placement, potentially reducing installation costs
  • Quad-Hall IC design minimizes mechanical stress effects
  • Temperature-compensated magnetics helps provide stable operation over a wide temperature range of -40 °C to 150 °C

Search Keywords: SS411A

规格

Product Attribute
Attribute Value
Select Attribute
Products found: 0
供应商:
Honeywell
部件编号:
SS411A
计量单位:
Per Each
RoHS:
Yes
HTS:
85423900
COO:
CN
ECCN:
EAR99
供应商标准包装: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1000
Package Type:
BAG
Magnetic Type:
Bipolar
Maximum Output Current:
20 mA
Mounting:
PCB Through Hole
Minimum Magnetic Sensor Release Point:
-60 Gs
Maximum Magnetic Sensor Operating Point:
60 Gs
Output Type:
Sink
Output Driver:
NPN
Product Type:
Digital
Dimension:
4.06 x 1.57 x 3 mm
Typical Operating Supply Voltage:
3.8 to 30 V
Termination Type:
PC Pins
Operating Temperature:
-40 to 150 °C

有存货: 229

可立即发货

库存数量的起订量: 5

缺货数量的起订量: 250

工厂交货期 9 周

数量
Unit Price
5
$10.49
50
$7.70
100
$7.47
250
$7.40
500
$7.36
750
$7.32
1,000 +
$7.28
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request

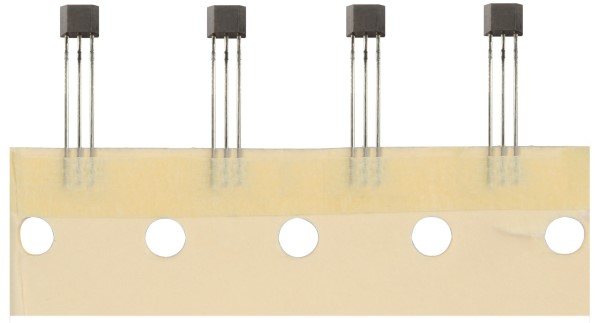

Older Equivalent
SS411A-R
SS411A-R
VIEW PRODUCT
