BZ-R31 by honeywell

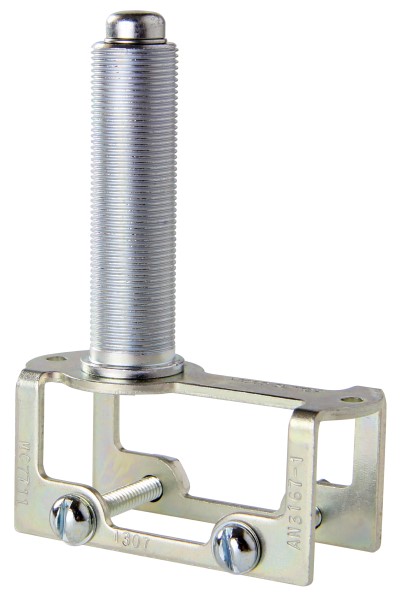

Image is representational - see mfr. specs

BZ-R31

Honeywell

MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw (SPDT), 15 A 125/250 Vac, ENEC 16 A 250 Vac, Pin Plunger, Binding Head Combination Screw Termination with Integral Lock Washers, Mounting Holes will Accept Pins or Screws, UL, CE, CSA, ENEC ...

产品说明书
符合 RoHS 规定
包装
附件
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

描述

Snap Action Switches, also known as micro switches, are switch devices that are used to open or close an electrical circuit at a rapid speed. These highly sensitive switches are often used in various applications, including valves, manually operated devices, HVAC systems, medical and dental equipment, test instruments, office equipment, timing devices, semi-trailer trucks, and irrigation systems.

BZ-R31 Snap Action Switch from Honeywell is a standard basic micro switch. With an elongated mounting hole, this Honeywell Switch enables more accurate and easier mounting. It has an operating temperature range between -55 °C to 85 °C [-67 °F to 185 °F], and delivers reliable performance even in harsh environments. This Micro Switch ensures long mechanical life that is up to 20,000,000 cycles at a 95% survival rate.

Product Highlights:

  • Accepted world-wide standard "Large Basic" switch
  • Choice of actuation, termination and operating characteristics
  • Low operating force and differential travel
  • Long mechanical life up to 20,000,000 cycles at 95% survival
  • Elongated mounting hole for easier, more accurate mounting
  • Current rating ranges from 15 A to 25 A

Search Keywords: BZR31

规格

Product Attribute
Attribute Value
Select Attribute
Products found: 0
供应商:
Honeywell
部件编号:
BZ-R31
计量单位:
Per Each
RoHS:
Yes
HTS:
85365009
COO:
MX
ECCN:
EAR99
供应商标准包装: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Mounting:
Through Hole
Pole Throw Configuration:
SPDT
Switch Configuration:
N.O./N.C.
Actuator Material/Style:
Plunger
Contact Rating @ Voltage:
186.42 A
Maximum Movement Differential:
0.13 mm
Operating Force:
7.78 N
Termination Style:
Screw
Dimension:
49.28 x 17.45 x 25.78 mm
Body Orientation:
Straight
IP Rating:
N/A

有存货: 251

可立即发货

工厂交货期 8 周

数量
Unit Price
1
$33.82
5
$26.72
10
$18.96
25
$17.72
50
$17.06
100
$16.47
250 +
$15.81
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

产品指南
