BZ-2RW82299-A2 by honeywell
图片仅供参考 - 请查看制造商规格
Honeywell 授权经销商

BZ-2RW82299-A2

MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw (SPDT), 15 A 125/250 Vac, ENEC 16 A 250 Vac, 26,7 mm [1.050 in] Sintered Roller Lever Actuator with Adjustable Operating Point, Binding Head Combination Screw Termination with Cup Washers, Mounting Holes will Accept Pins or Screws, UL, CE, CSA, ENEC ...

查看数据表 询问数据表
符合 RoHS
包装
附件
请求编程报价
合规证书

描述

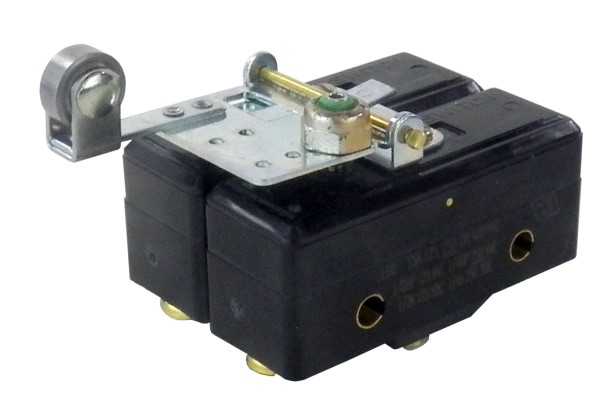

BZ-2RW82299-A2 Snap Action Switch from Honeywell comes with an elongated mounting hole for easier and accurate mounting. It also comes with screw termination, roller lever actuator, silver contacts and has a low operating force. This SPDT switch offers a wide choice of actuation, termination and operating characteristics with a long mechanical life up to 20,000,000 cycles at 95% survival.

Snap Action Switches are devices that are used to open or close an electrical circuit at a rapid speed. They are also known as micro switches. Honeywell Switch BZ-2RW82299-A2 is widely used in various applications such as irrigation systems, semi-trailer trucks, timing devices, office equipment, test instruments, medical or dental equipment, HVAC equipment, manually operated devices, and valves.

产品亮点:

  • Accepted world-wide standard "Large Basic" switch
  • Low operating force and differential travel
  • Elongated mounting hole for easier and accurate mounting
  • Roller lever actuator
  • Current rating ranges from 15 A to 25 A
  • Long mechanical life up to 20,000,000 cycles at 95% survival
  • Choice of actuation, termination and operating characteristics
  • Operating temperature range: -55 °C to 85 °C

潜在应用:

  • Irrigation systems
  • Semi-trailer trucks
  • Timing devices
  • Office equipment
  • Test instruments
  • Medical/dental equipment
  • HVAC equipment
  • Manually operated devices
  • Valves

搜索关键词: BZ2RW82299A2

规格

产品属性
属性值
选择属性
找到的产品: 0
供应商:
Honeywell
部件编号:
BZ-2RW82299-A2
计量单位:
每 Each
RoHS:
Yes
HTS:
85365000
COO:
MX
ECCN:
EAR99
供应商标准包装: 此信息提供给偏好按制造商标准包装数量的倍数购买的客户。最小订购数量和要求的订购倍数会与我们的价格和库存信息一起显示。
1
安装方式:
Through Hole
极-位配置:
SPDT
开关配置:
N.O./N.C.
致动器材质/样式:
Stainless Steel/N/A/N/A/Roller Lever
触点额定电流 @ 电压:
16@250VAC A
最大动作差:
0.51 mm
操作力:
1.67 N
端接方式:
Screw
尺寸:
49.28mm x 17.45mm x 41.3 mm
本体方向:
Straight
IP等级:
N/A
