1SE1-3

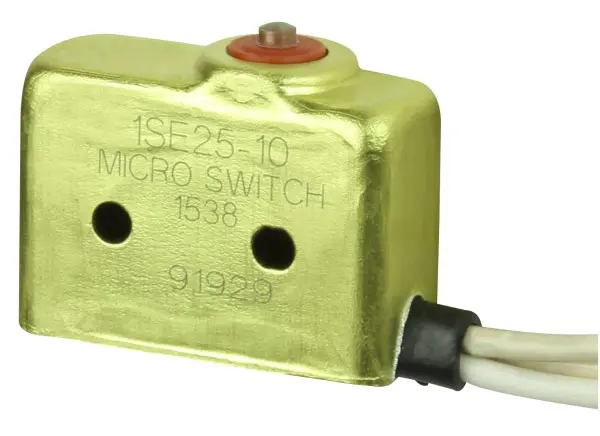

MICRO SWITCH™ Miniature Environmentally Sealed Basic Switches: SE Series, Single Pole Double Throw (SPDT), 5 A at 250 Vac, Stainless Steel Pin Plunger, (3) 914 mm [36 in] Lead Wire Termination (20 Gage), -53 °C to 105 °C [-65 °F to 221 °F] Temperature Range ...

查看数据表 询问数据表
符合 RoHS
包装
附件
请求编程报价
合规证书

描述

Snap Action Switches, which are also known as micro switches, is a type of momentary contact switch that can rapidly change positions responding to small movements. A Snap Action Switch operates at a rapid speed as it takes very little force or stimulus to operate. This SPDT Snap Switch is widely used in aircraft, ordinance, moist or dusty industrial environments.

1SE1-3 Snap Action Switch from Honeywell comes with SPDT circuitry and a power load switching capability of 7A. This Honeywell switch has a high temperature tolerance up to 149 °C and comes in a very small package size. This environment-sealed basic switch comes with a choice of actuation for design flexibility and precision functionality.

产品亮点:

  • Choice of actuation
  • Temperature tolerance to 105 °C [221 °F]
  • High temperature construction for use to 149 °C [300 °F]
  • Watertight seal per MIL-PRF-8805, enclosure design symbol 3
  • Very small package size
  • Power load switching capability to 7 A

搜索关键词: 1SE13

规格

产品属性
属性值
选择属性
找到的产品: 0
供应商:
Honeywell
部件编号:
1SE1-3
计量单位:
每 Each
RoHS:
Yes
HTS:
85365000
COO:
US
ECCN:
EAR99
供应商标准包装: 此信息提供给偏好按制造商标准包装数量的倍数购买的客户。最小订购数量和要求的订购倍数会与我们的价格和库存信息一起显示。
1
安装方式:
Through Hole
极-位配置:
SPDT
开关配置:
N.O./N.C.
致动器材质/样式:
Steel/Plunger
触点额定电流 @ 电压:
5@250VAC 30VDC A
最大动作差:
0.1 mm
操作力:
4.73 N
端接方式:
Wire Lead
尺寸:
22.25 x 8.79 x 18.92 mm
本体方向:
Straight
IP等级:
N/A
