71BDF30-03PAJS by grayhill

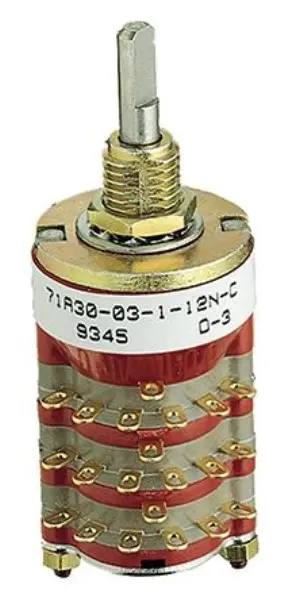

Image is representational - see mfr. specs

71BDF30-03PAJS

Grayhill

A Series 71, 3-deck rotary switch featuring a 30° angle of throw, 1/4-inch shaft, adjustable stops, shorting contacts, and PC mount terminals. ...

产品说明书
符合 RoHS 规定
包装
附件
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

描述

The 71BDF30-03PAJS is a multi-deck rotary switch designed for circuit selection and signal routing. This model features a 30° angle of throw, a 1/4-inch diameter shaft, and three decks with shorting (make-before-break) contacts. It is equipped with PC mount terminals for easy integration onto printed circuit boards. A key feature is its adjustable stops, which allow the user to set the number of active positions as needed for the application. This flexibility makes the switch suitable for a wide range of uses, from prototyping to production in various electronic instruments.

Search Keywords: 71BDF3003PAJS

规格

Product Attribute
Attribute Value
Select Attribute
Products found: 0
供应商:
Grayhill
部件编号:
71BDF30-03PAJS
Alias/AKA:
71BDF30-03-1-AJS
计量单位:
Per Each
RoHS:
Yes
HTS:
8536509020
COO:
US
ECCN:
EAR99
供应商标准包装: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Number of Positions:
N/A
Pole Throw Configuration:
SP
Actuator Length:
9.53 mm
Dimension:
22.23mm x 47.85mm x 18.08 mm
Actuator Style/Diameter:
Flatted Shaft/6.36
Mounting:
Panel Mount/Through Hole
Body Orientation:
Right Angle
Terminal Type:
PC Pins
Angle of Throw:
30 °
Contact Rating @ Voltage:
0.3@115VAC A

有存货: 17

可立即发货

已订购: 100   可以发货 7/6/26

缺货数量的起订量: 7

工厂交货期 14 周

数量
Unit Price
1
$56.50
5
$55.94
7
$53.68
13
$51.05
19
$50.92
25 +
$47.73
Log in for special pricing Click for Quote Price Match Request
