04A-B01 by grayhill

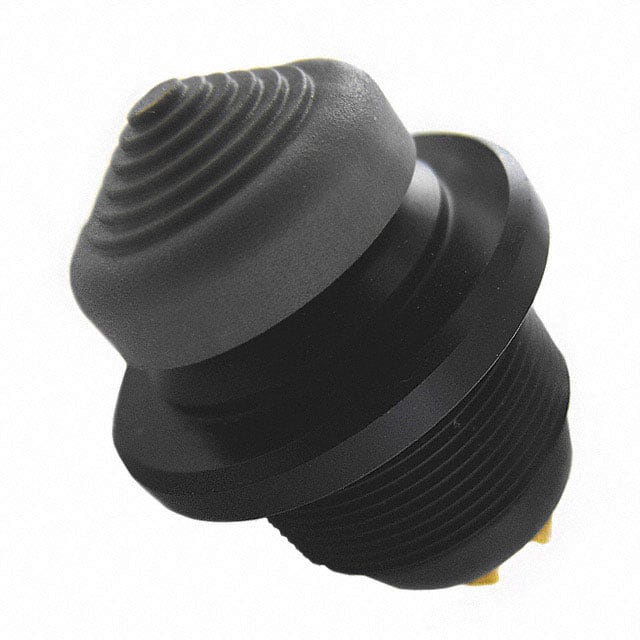

Image is representational - see mfr. specs

04A-B01

Grayhill

Switch Push Button 4PST Bat Handle 0.25A 220VAC PC Pins Thru-Hole ...

产品说明书
符合 RoHS 规定
包装
附件
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

描述

The 04A-B01 is a butt contact pushbutton switch with a permanently attached bat-handle actuator, designed for joystick-style position control and cursor movement on display screens. This 4PST (four-pole, single-throw) switch features a rated capacity of 250 mA at 115 Vac or 125 mA at 220 Vac resistive load with a contact life of 500,000 operations. The switch incorporates gold-plated brass terminals, phosphor bronze shorting bar, and tinned music wire springs, with an operating temperature range of -40°C to +85°C and a contact resistance of 25 milliohms maximum. The bat-handle measures 0.375 ± 0.005 inches in diameter and 1.219 ± 0.020 inches in length, providing ergonomic control for menu navigation and cursor positioning applications. This switch is ideal for legacy CRT screen interfaces, industrial control panels, and any application requiring reliable joystick-style actuation.

Search Keywords: 04AB01

规格

Product Attribute
Attribute Value
Select Attribute
Products found: 0
供应商:
Grayhill
部件编号:
04A-B01
Alias/AKA:
ASM,4WAY,BAT-HANDLE,ROHS
计量单位:
Per Each
RoHS:
Yes
HTS:
8536509030
COO:
US
ECCN:
EAR99
供应商标准包装: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Mounting:
Through Hole
Pole Throw Configuration:
4PST
Bushing Type:
N/R
Switch Configuration:
N.O./N.C.
Contact Rating @ Voltage:
0.25A@115 VAC
Actuator Style:
Bat Handle
Illumination:
N/R
Terminal Type:
PC Pins
Body Orientation:
Straight
Dimension:
21.59 x 21.59 x 30.96 mm

有存货: 60

Ships today, if you order in

工厂交货期 12 周

PRICE (USD)

数量
Unit Price
1
$36.52
5
$30.80
10
$28.77
25
$26.42
50
$24.78
100
$23.36
250 +
$23.30
