FMAD1000

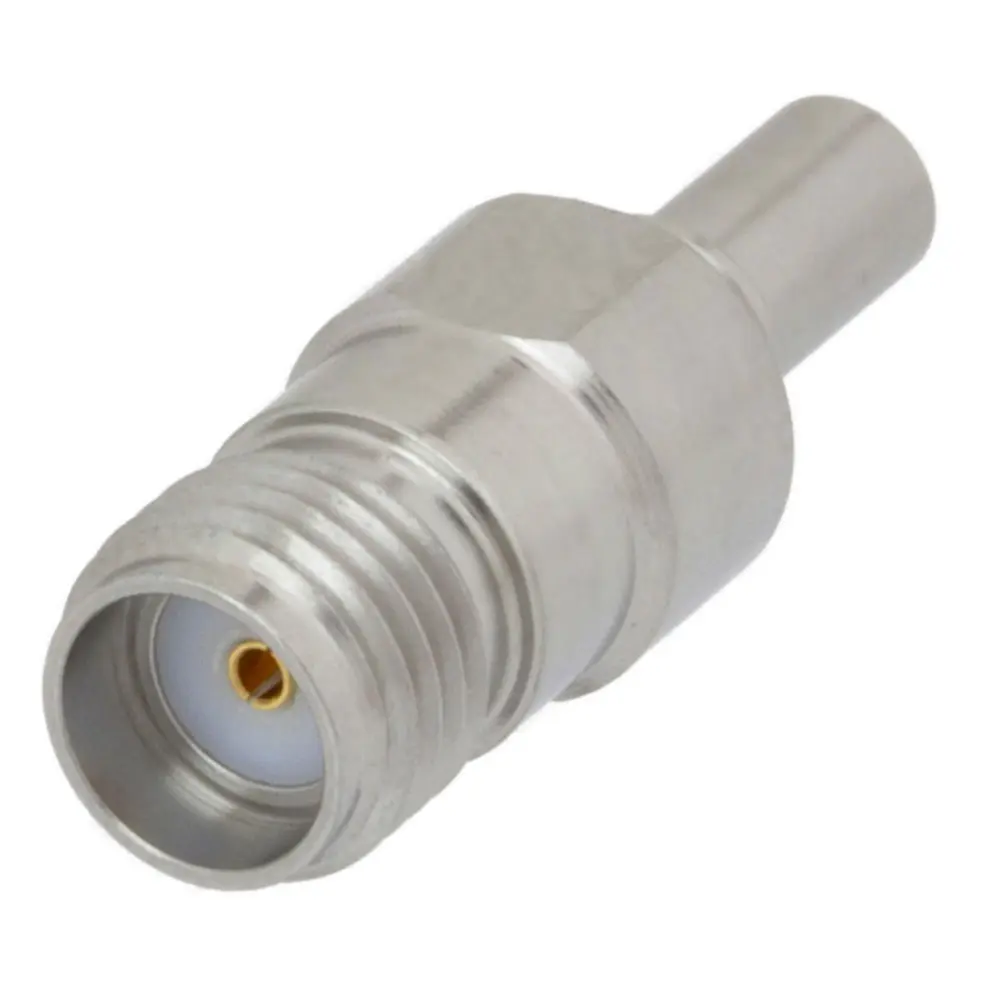

The FMAD1000 is a straight, 50 Ohm SMA female to Mini SMP male full detent adapter that operates from DC to 18 GHz. ...
描述
The FMAD1000 is a straight body RF adapter designed to connect SMA female to Mini SMP male full detent interfaces. It operates over a frequency range from DC to 18 GHz while maintaining a low maximum VSWR of 1.35:1. This 50 Ohm adapter is constructed with a passivated stainless steel body and features gold-plated beryllium copper contacts for reliable signal transmission. Ideal for general purpose testing and enabling connections between different connector series, its SMA and Mini SMP interfaces both meet MIL-STD-348A specifications.
搜索关键词: FMAD1000
规格
FREQUENTLY ASKED QUESTIONS
Is FMAD1000 RoHS compliant?
Yes, FMAD1000 is RoHS compliant.
What is the lead time for FMAD1000?
The standard lead time for FMAD1000 is approximately 9 days. In-stock quantities ship from Master Electronics.
有存货: 5
发货 today, 输入设置值。
工厂交货期 9 周
数据表
Learn more about Fairview Microwave's FMAD Adapter Series for RF Connectivity
