描述

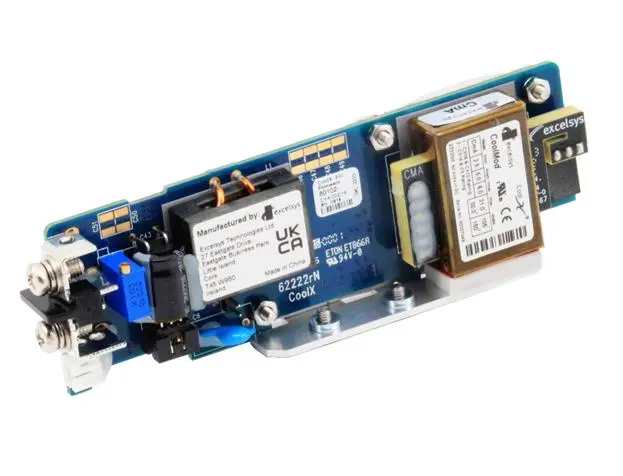

CMA is a single-output modular power supply module designed for integration into the Advanced Energy CoolX1000 fanless 1000W modular power supply system. The module delivers 5V nominal output with a maximum current of 21A and 105W power capacity, featuring an adjustable set point range from 2.5V to 6.0V to accommodate various load requirements. Operating over a temperature range of -30°C to +85°C with non-condensing humidity up to 95% RH, the CMA module supports both analog and digital PMBus monitoring and control capabilities for flexible system management. The module is certified to multiple safety standards including IEC60601-1 3rd edition for medical applications and IEC62368-1 for industrial use, making it suitable for clinical diagnostic equipment, medical lasers, test and measurement systems, and industrial automation applications where reliable, noise-free power delivery is essential.
