描述

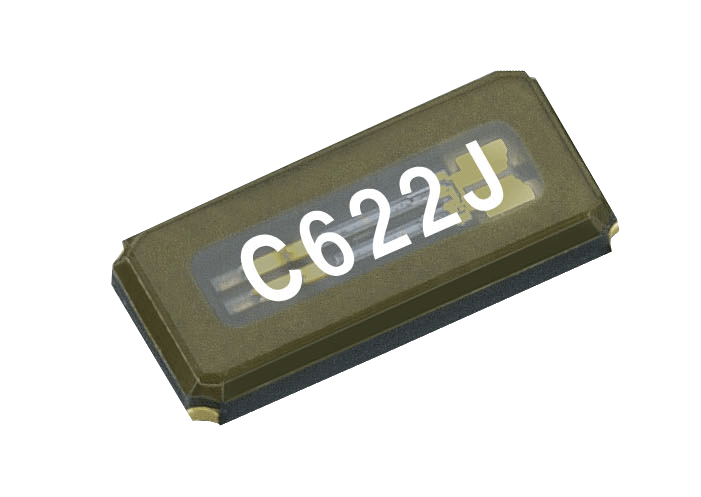

FC-13532.7680KA-A0 is a kHz-range crystal unit manufactured by Seiko Epson for precision timing applications. It operates at a nominal frequency of 32.768 kHz with a fundamental overtone order and is housed in a compact 3.2 × 1.5 × 0.9 mm package. The unit features a motional resistance (ESR) of 70 kO maximum, motional capacitance of 3.4 fF typical, and shunt capacitance of 1.0 pF typical, with selectable load capacitance options of 7 pF, 9 pF, or 12.5 pF. It operates reliably across a temperature range of -40°C to +85°C with a frequency tolerance of ±20 × 10?6 at +25°C and exhibits frequency aging of ±3 × 10?6 per year maximum. This crystal unit is ideal for small communications devices, real-time clocks, and portable electronics requiring stable, low-power timing references.
搜索关键词: FC135327680KAA0
规格
常见问题
FC-13532.7680KA-A0 是否符合 RoHS 标准？
是的，FC-13532.7680KA-A0 符合 RoHS 标准。
FC-13532.7680KA-A0 的交货期是多少？
FC-13532.7680KA-A0 的标准交货期约为 12 周。有库存的数量由 Master Electronics 发货。
有存货: 4,000
可立即发货
最小订购数量: 1000
此消息模板用于通知联盟会员某个订单已付款。当金额被扣款时，订单会获得已付款状态。: 1000
工厂交货期 12 周
数据表
Product Change Notification
