ERTD2A101C by ei sensor technologies

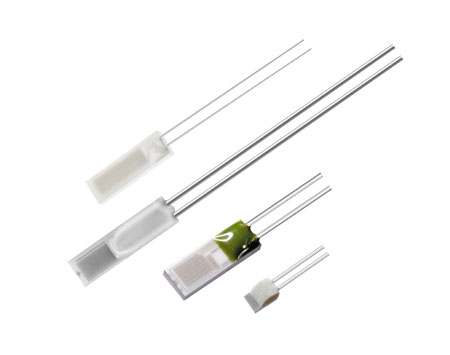

Image is representational - see mfr. specs

ERTD2A101C

EI Sensor Technologies

The ERTD2A101C is a platinum RTD element designed for precise temperature measurement over a wide range. ...

产品说明书
符合 RoHS 规定
Bulk 包装
附件
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

描述

The ERTD2A101C is a platinum Resistance Temperature Detector (RTD) element designed for high-accuracy temperature sensing. It provides a nominal resistance of 100 Ω at 0°C with an accuracy of ±0.15°C, conforming to the IEC 60751 F 0.15 accuracy class. The sensor features a Temperature Coefficient of Resistance (TCR) of 3,850 ppm/°C and an extremely broad operating temperature range of -200°C to +750°C. With a thermal time constant of 7.5 seconds and a low recommended applied current of 1 mA, this RoHS-compliant element is well-suited for demanding industrial, scientific, and process control applications requiring reliable and stable temperature monitoring.

Search Keywords: ERTD2A101C

规格

Product Attribute
Attribute Value
Select Attribute
Products found: 0
供应商:
EI Sensor Technologies
部件编号:
ERTD2A101C
计量单位:
Per Each
RoHS:
Yes
HTS:
8533210090
COO:
CH
ECCN:
EAR99
供应商标准包装: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
25
Package Type:
Bulk
Type:
Pt RTD
Mounting:
PCB Thru Hole
Accuracy:
0.15°C
Sensitivity Index:
N/A
Thermal Time Constant:
7.5 seconds
Operating Temperature:
-200 to +750°C
Resistance @ 25C:
100 ohm
Description of Terminals:
Radial Leads
Thermal Coefficient:
N/A
Dimension:
1.614675(Max)mm x 1.73(Max)mm x 5(Max)mm
Supplier Package:
NA

有存货: 20

可立即发货

缺货数量的起订量: 19

工厂交货期 7 周

数量
Unit Price
1
$52.35
19
$49.73
38
$30.60
56
$24.66
75 +
$24.16
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

产品指南
