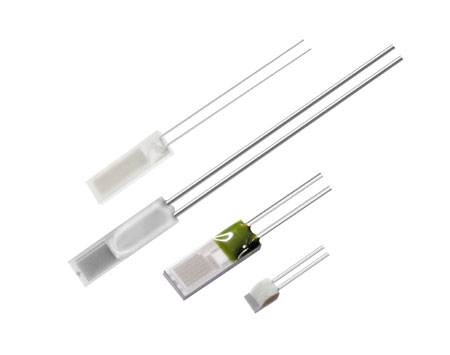

ERTD2A101B by ei sensor technologies
Image is representational - see mfr. specs

ERTD2A101B

EI Sensor Technologies

RTD Element - 100 ohm (+/-) 0.06% - +600°C Max ...

产品说明书
符合 RoHS 规定
Bulk 包装
附件
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

描述

ERTD2A101B is a glass-coated RTD element designed for precision temperature measurement applications. The sensor features a 0.0079" nominal diameter platinum-clad nickel lead wire construction with a ceramic substrate and glass coating for protection and stability. Key technical characteristics include a resistance of 100 O ± 0.06% at 0°C, accuracy of ± 0.15°C at 0°C (IEC 60751 F 0.15 accuracy class), and a temperature coefficient of resistance (TCR) of 3,850 ppm/°C. The element operates over an extended temperature range from -200°C to +600°C with a thermal time constant of 5.4 seconds nominal in air at 1 m/second, a dissipation constant of 3.6 mW/°C nominal in air, and a maximum recommended applied current of 1 mA. This RTD element is ideal for industrial temperature sensing, process control, and high-temperature measurement applications where precision and wide temperature range capability are essential.

Search Keywords: ERTD2A101B

规格

Product Attribute
Attribute Value
Select Attribute
Products found: 0
供应商:
EI Sensor Technologies
部件编号:
ERTD2A101B
计量单位:
Per Each
RoHS:
Yes
HTS:
8533210090
COO:
CH
ECCN:
EAR99
供应商标准包装: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Bulk
Type:
Pt RTD
Mounting:
PCB Thru Hole
Accuracy:
0.15°C
Sensitivity Index:
N/A
Thermal Time Constant:
5.4 seconds
Operating Temperature:
-200 to +600°C
Resistance @ 25C:
100 ohm
Description of Terminals:
Radial Leads
Thermal Coefficient:
N/A
Dimension:
1.614675(Max)mm x 1.73(Max)mm x 2.5(Max)mm
Supplier Package:
NA

有存货: 124

可立即发货

库存数量的起订量: 3

缺货数量的起订量: 3

工厂交货期 7 周

PRICE (USD)

数量
Unit Price
3
$8.34
10
$7.47
25
$7.09
50
$6.88
75
$6.84
150
$6.81
225
$6.77
300 +
$6.74
Suppliers Standard Package
