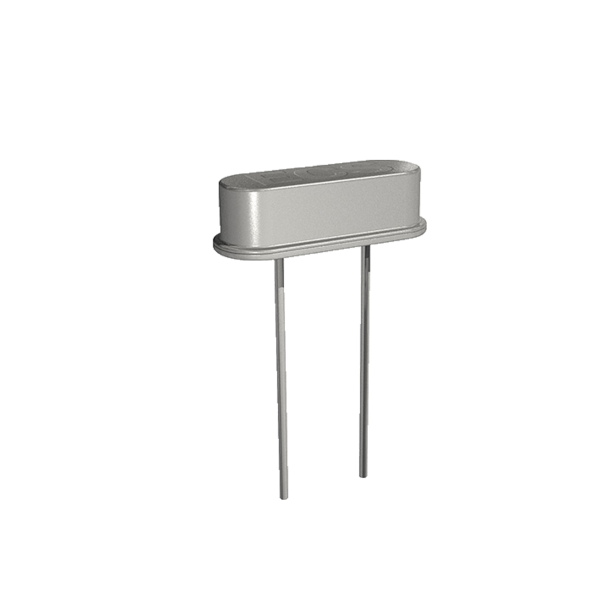

ECS-160-20-4X
Crystal - 16.0000MHz ±30ppm - 20pF - 40 Ohm - ±50ppm -10°C to 70°C - Thru Hole - HC49/USX - 0.447" x 0.183" x 0.138" (11.35mm x 4.65mm x 3.50mm) ...
描述
The ECS-160-20-4X is a low-profile resistance weld type through-hole quartz crystal designed for cost-effective timing applications. Based on the part number decoding, this device operates at 16.000 MHz with a 20 pF load capacitance and a 3.5 mm height package. The crystal exhibits a frequency tolerance of ±30 ppm at +25°C and frequency stability of ±50 ppm over the operating temperature range of -10°C to +70°C, with a maximum shunt capacitance of 7 pF and drive level of 500 µW. The device is RoHS compliant and lead-free, with MSL 1 rating, making it suitable for consumer and industrial electronics requiring reliable frequency references in compact form factors.
搜索关键词: ECS160204X
规格
常见问题
ECS-160-20-4X 是否符合 RoHS 标准？
是的，ECS-160-20-4X 符合 RoHS 标准。
ECS-160-20-4X 的交货期是多少？
ECS-160-20-4X 的标准交货期约为 14 周。有库存的数量由 Master Electronics 发货。
