4600N by ebm-papst
Image is representational - see mfr. specs

4600N

ebm-papst

AC Fans AC Tubeaxial Fan, 119x119x38mm, 115VAC, 105.9CFM, 18W, 3100RPM, 50dBA, Sintec Bearing ...

产品说明书
符合 RoHS 规定
Box 包装
附件
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

描述

4600N is AC fans with external rotor shaded-pole motor. Impedance protected against overloading. Metal fan housing and impeller. Air intake over struts. Direction of rotation clockwise, seen on rotor. Electrical connection via 2 flat plugs 3.0 x 0.5 mm. Impeller with 3 or 5 blades, see note for fan type. Optionally available: Models with reinforced flanges and single leads. Fan housing with grounding lug for screw M 4 and UNC. Mass: 550 g. Please note our new ACmaxx Series. With identical mounting dimensions and voltages, this Series achieves higher energy efficiency. Voltage - Rated 115VAC Size / Dimension Square - 119mm L x 119mm H Width 38.00mm Air Flow 106.0 CFM (2.97m³/min) Bearing Type Sintec Fan Type Tubeaxial Noise 50.0 dB(A) Power (Watts) 18.00W RPM 3100 RPM Termination 2 Terminals Operating Temperature 14 ~ 140°F (-10 ~ 60°C)

Search Keywords: 4600N

规格

Product Attribute
Attribute Value
Select Attribute
Products found: 0
供应商:
ebm-papst
部件编号:
4600N
计量单位:
Per Each
RoHS:
Yes
HTS:
8414596090
COO:
CN
ECCN:
EAR99
供应商标准包装: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Box
Category:
AC Fan
Dimension:
119 x 119 x 38 mm
Voltage Rating:
115 V
Power Rating:
18 W
Maximum Airflow:
105 CFM
Noise Level:
50 dB
Special Features:
None
Termination:
Terminal
Housing Material:
DieCast Aluminum
Operating Temperature:
-10 to 60 °C
  Possible Replacement options available.  See Alternatives

有存货: 319

可立即发货

已订购: 500   可以发货 5/28/26

工厂交货期 24 周

数量
Unit Price
1
$40.62
5
$37.78
10
$30.51
25
$29.89
50
$29.57
100
$29.42
250 +
$26.58
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

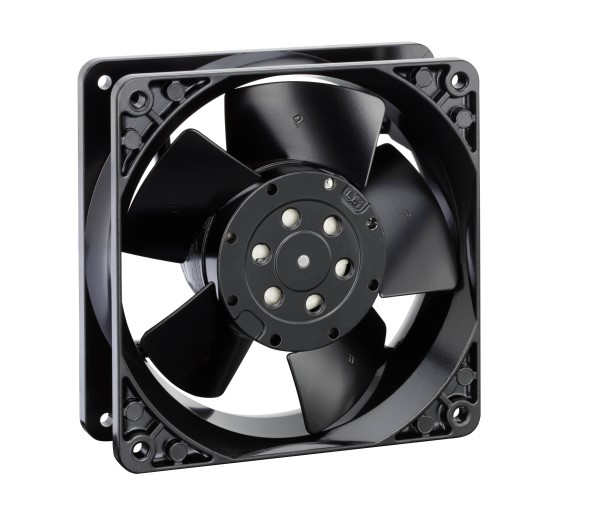

Older Equivalent
4530N
4530N
VIEW PRODUCT

Tools/3D Models

产品指南

Product Changes

附件

LZ30-6

Thrml Mgmt Access Finger Guard Plastic

LZ30-5

Fan Accessories Plastic Finger Guard (PPO) for 4000/9000 Series - Screw Connection - 119mm ...

LZ30P

Finger Guard Plastic - 120mm Square (Note: The ebm-papst version sold in Europe is 127mm ...

10021-1-5170

.25 Plastic Filter with Foam pad

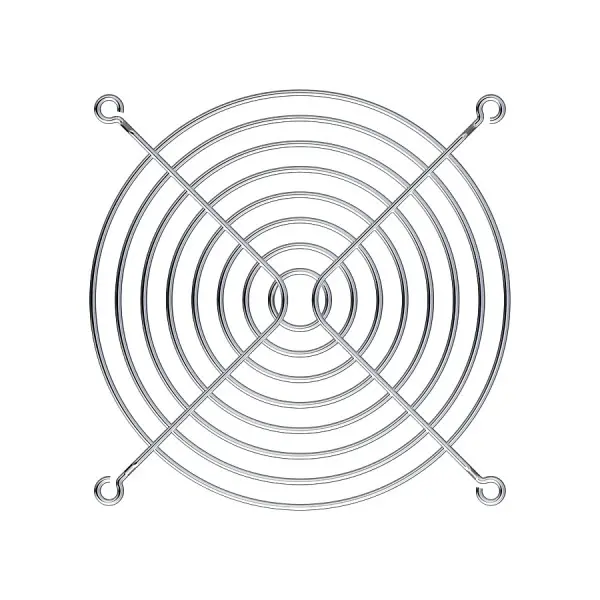

LZ30
