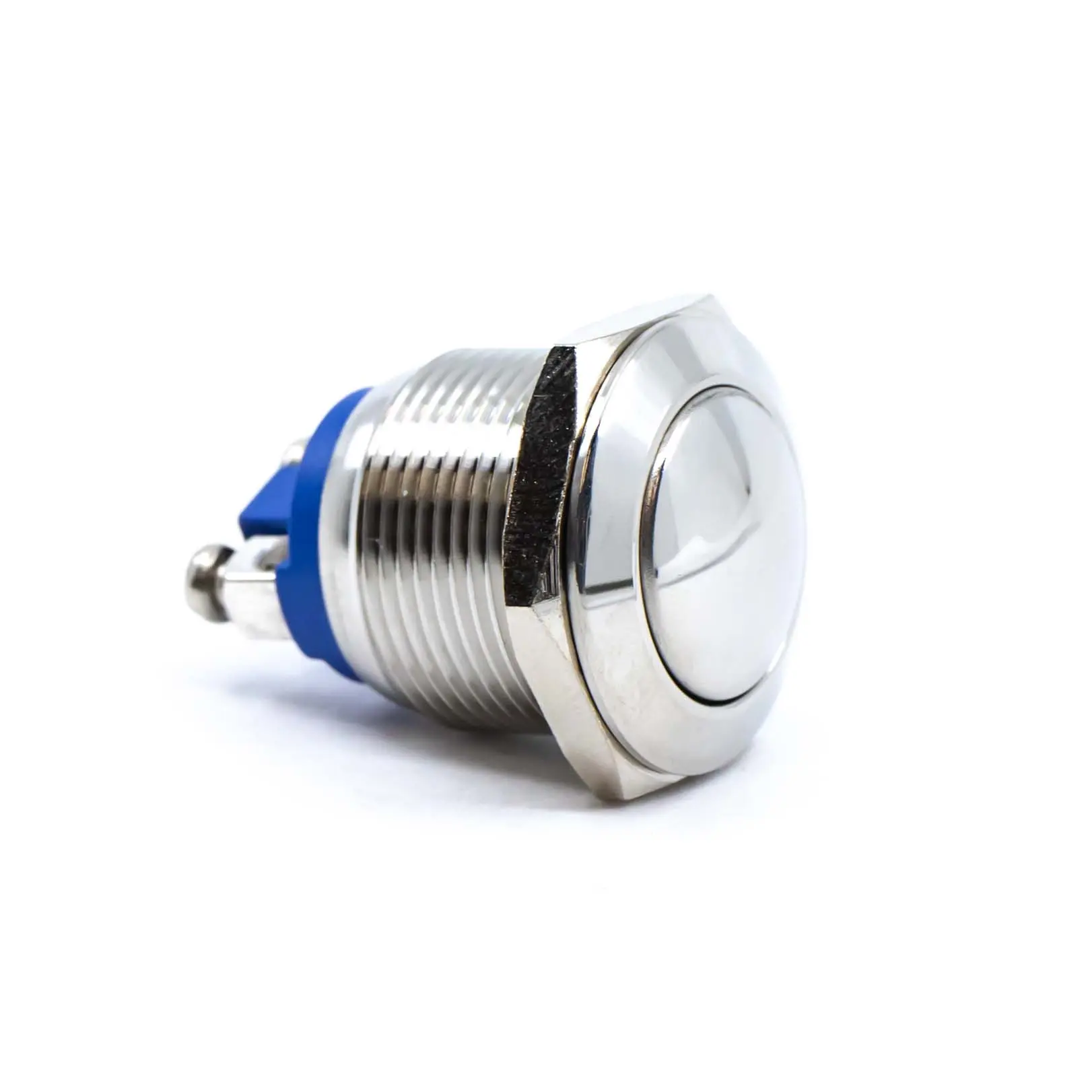

PV1S640SS by e-switch
图片仅供参考 - 请查看制造商规格
E-Switch 授权经销商

PV1S640SS

Pushbutton Switch - SPST-NO - Anti-Vandal - 2A - 48VDC - Polished Stainless Round Domed Button Actuator - Silver Contacts - Screw Terminal - Front Panel Mount.

查看数据表 询问数据表
符合 RoHS
包装
附件
请求编程报价
合规证书

描述

The PV1S640SS is pushbutton switch with IP65 (dust tight, water resistant) protection. Operating temperature range is from -20°C to 55°C.

搜索关键词: PV1S640SS

规格

产品属性
属性值
选择属性
找到的产品: 0
供应商:
E-Switch
部件编号:
PV1S640SS
计量单位:
每 Each
RoHS:
Yes
HTS:
8536509065
COO:
CN
ECCN:
EAR99
供应商标准包装: 此信息提供给偏好按制造商标准包装数量的倍数购买的客户。最小订购数量和要求的订购倍数会与我们的价格和库存信息一起显示。
40
安装方式:
Panel Mount
极-位配置:
SPST
套管类型:
Threaded
开关配置:
Off (On)
触点额定电流 @ 电压:
2A@36 VDC
致动器样式:
Dome
照明:
N/R
端子类型:
Screw
本体方向:
Straight

FREQUENTLY ASKED QUESTIONS

Is PV1S640SS RoHS compliant?

Yes, PV1S640SS is RoHS compliant.

What is the lead time for PV1S640SS?

The standard lead time for PV1S640SS is approximately 14 days. In-stock quantities ship from Master Electronics.

有存货: 63

发货 today, 输入设置值。

已订购: 200   可以发货 10/21/26

最小订购数量: 5

工厂交货期 14 周

价格 (USD)

数量
单价
5
$8.82
40
$6.69
80
$6.62
120
$6.48
280
$6.14
520
$5.89
1,000 +
$5.81
供应商标准包装
登录以获取特别价格 点击询价 价格匹配请求

工具/3D模型

产品指南
