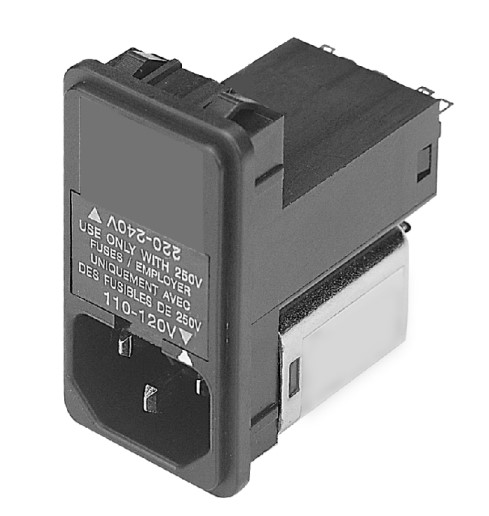

The 03IB2D is a power entry module EMI filter that integrates an IEC connector, double-fuse (IEC 5 × 20 mm) holder, and double-pole power switch with EMI filtering in a single compact unit. The module is rated for 3A at both 115VAC and 250VAC with an operating frequency of 50/60 Hz, featuring a maximum inrush current of 50A and a switch electrical lifetime of 10,000 cycles. The EMI filter incorporates a series inductance of 2.0 mH, a parallel capacitance of 0.22 µF to ground, and a 2200 pF capacitance between lines, with a 1 MO bleeder resistor. The unit achieves common-mode insertion loss of up to 40 dB at 0.5 MHz and differential-mode insertion loss of up to 35 dB, with maximum leakage current of 0.4 mA at 250VAC 50 Hz and hipot ratings of 2250 VDC line-to-ground and 1450 VDC line-to-line. All part numbers are UL recognized, CSA certified, and VDE approved, making this module suitable for industrial power distribution, medical equipment, and telecommunications applications requiring integrated EMI filtering and power control.
