CFM06S240

Name: CFM06S240
Brand: Cincon Electronics
SKU: 56639815
Price: 37.8 USD
Availability: InStock

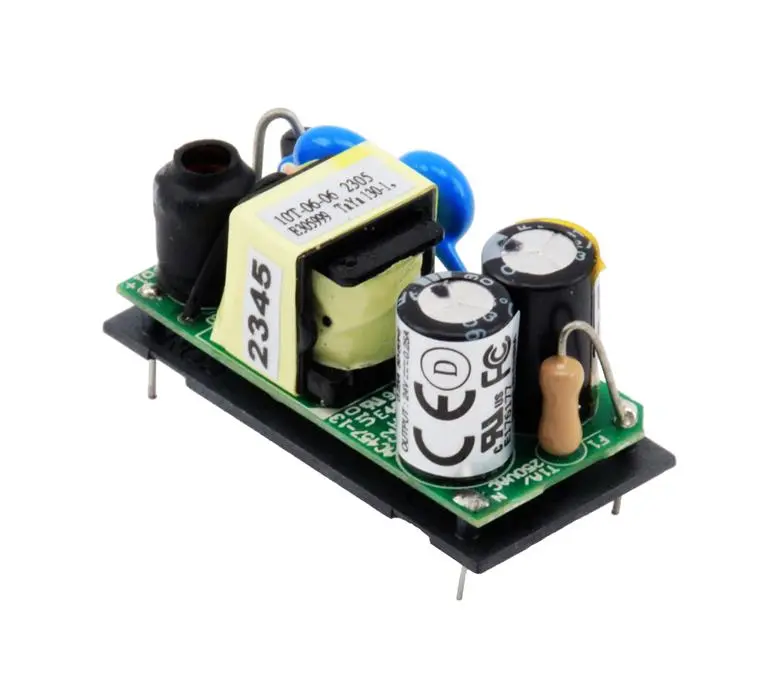

The CFM06S240 is a 6W open-frame AC-DC module that provides a single regulated 24V DC output. ...

查看数据表询问数据表

符合 RoHS

Box 包装

描述

The CFM06S240 is a 6W open-frame AC-DC module from the CFM06S series, designed to convert a universal AC input to a 24V DC output. It delivers an output current of 0.25A with a typical efficiency of 83% at full load. This module maintains a voltage accuracy of ±3% with line and load regulation of ±1% and ±3% respectively, and has a maximum ripple and noise of 240 mV. Featuring a universal input range of 90-264Vac, continuous short circuit protection, and very low no-load power consumption of less than 0.075W, it is a reliable power solution. Its compact size and compliance with safety standards like IEC/EN/UL 62368-1 make it suitable for a wide range of industrial and commercial applications.

产品亮点:

潜在应用:

搜索关键词: CFM06S240
