描述

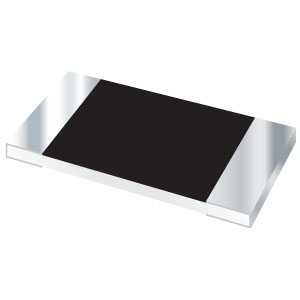

CR1206-FX-2003E is a thick film chip resistor designed for general-purpose applications requiring reliable performance in compact form factors. This 1206-sized resistor features a power rating of 1/4 W at 70°C, a maximum working voltage of 200 V, and a maximum overload voltage of 400 V, making it suitable for a wide range of circuit designs. The device offers 1% and 5% tolerance options with a temperature coefficient of ±200 ppm/°C, tight tolerance of bottom electrode width, and a three-layer termination process with nickel barrier to prevent leaching and ensure excellent solderability. The resistor is RoHS compliant and supplied in tape and reel packaging, providing convenient automated assembly for high-volume production. Common applications include consumer electronics, industrial control circuits, and general-purpose signal conditioning where cost-effective, reliable resistive elements are required.
