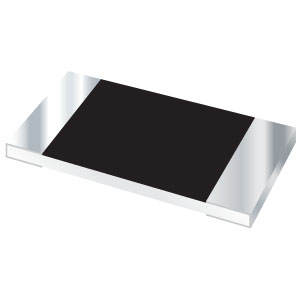

CR0805-JW-330E is a thick film chip resistor designed for general-purpose electronic applications requiring reliable resistive elements in compact form factors. This 0805-sized resistor features a nominal resistance value of 33 O with ±5% tolerance (J designation), a power rating of 1/8 W at 70°C, and a maximum working voltage of 150 V. The device incorporates a three-layer termination process with nickel barrier to prevent leaching and ensure excellent solderability, along with tight tolerance of the bottom electrode width for consistent performance. Operating over a temperature range of -55°C to +155°C with a temperature coefficient of ±200 ppm/°C, this resistor is well-suited for consumer electronics, industrial control circuits, and general-purpose signal conditioning applications where cost-effective, reliable passive components are required.
