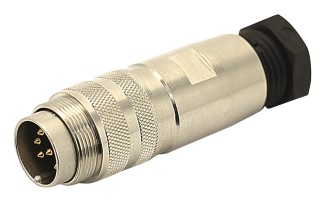

C09131F0061012U
Connector M16 Circular Socket 6 Position Solder Right Angle Cable Mount 6 Terminal 1 Port ...
描述
C09131F0061012U is an M16 D circular DIN connector from Amphenol's signalmate® C091 family, designed for industrial signal and power connections with environmental protection up to IP65/67/69K when mated. The connector features a metal screw coupling system, thermoplastic dielectric material, and silver/gold contact plating, supporting 2 through 8, 12, and 14 position configurations. It operates across a temperature range of -40°C to +100°C with current ratings of 2-3 positions at 10A, 5-8 positions at 7A, and 12-14 positions at 3A at +40°C. The connector provides excellent EMI shielding capability with insulation resistance greater than 10¹²O and contact resistance less than 5mO, supporting both solder and crimp terminations for AWG 18 through 28 wire sizes. This connector is ideal for measuring instruments, equipment, and diverse industrial applications requiring reliable power and signal integrity in demanding environmental conditions.
搜索关键词: C09131F0061012U
规格
常见问题
什么产品可以替代 C09131F0061012U？
C09131F0061012U 的推荐替代产品是 Amphenol Tuchel 的 C09131H0122012U，可从 Master Electronics 购买。
C09131F0061012U 是否符合 RoHS 标准？
是的，C09131F0061012U 符合 RoHS 标准。
C09131F0061012U 的交货期是多少？
C09131F0061012U 的标准交货期约为 22 周。有库存的数量由 Master Electronics 发货。
Product Drawing
3D CAD Drawing
数据表
Learn more about Amphenol Tuchel Industrial signalmate® C091 (M16 Size) Family of Connectors
