ATP06-2S-KIT01 by amphenol sine systems

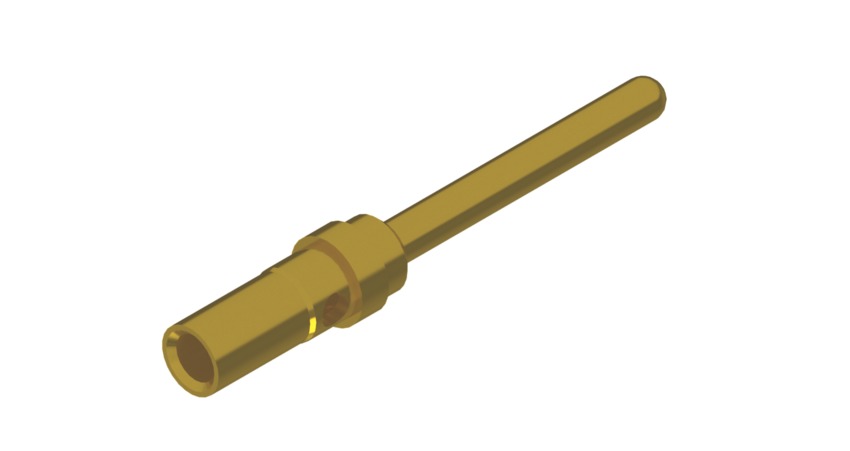

图片仅供参考 - 请查看制造商规格
Amphenol Sine Systems 授权经销商

ATP06-2S-KIT01

2-Way Socket Plug, Wedge and Contacts Kit ...

查看数据表
符合 RoHS
BAG 包装
附件
请求编程报价
合规证书

描述

ATP06-2S-KIT01 is a 2-position plug kit from the Amphenol Sine Systems ATP Series™ designed for heavy-duty industrial applications requiring reliable multi-pin connectivity. The kit includes one plug connector, two socket contacts (Size 12), and one AWP-25 wedgelock, all rated for 25A continuous current at 250V. The connector features a thermoplastic housing with superior UV resistance, excellent dielectric and mechanical properties, and is RoHS compliant. The integral latching system ensures definitive electrical and mechanical connections with environmental seals providing IP68/IP69K protection. Performance specifications include insulation resistance of 1000 megohms minimum at 25°C, contact retention of 70 lbs for Size 12 contacts, and thermal cycling capability with no cracking or leaking after 20 cycles from -55°C to +125°C. This kit is ideal for industrial equipment, machinery, and systems requiring robust, sealed connectors that maintain continuity under vibration (21 G's at 10-2000 Hz) and physical shock (50 G's in three perpendicular planes).

搜索关键词: ATP062SKIT01

规格

产品属性
属性值
选择属性
找到的产品: 0
供应商:
Amphenol Sine Systems
部件编号:
ATP06-2S-KIT01
计量单位:
每 Each
RoHS:
Yes
HTS:
8536698000
COO:
MX
ECCN:
EAR99
供应商标准包装: 此信息提供给偏好按制造商标准包装数量的倍数购买的客户。最小订购数量和要求的订购倍数会与我们的价格和库存信息一起显示。
40
封装类型:
BAG

常见问题

ATP06-2S-KIT01 是否符合 RoHS 标准？

是的，ATP06-2S-KIT01 符合 RoHS 标准。

ATP06-2S-KIT01 的交货期是多少？

ATP06-2S-KIT01 的标准交货期约为 22 周。有库存的数量由 Master Electronics 发货。

有存货: 2

发货 today, 输入设置值。

购买全部 2 个现货或常规最小订购数量 5

制造商库存: 40   可以发货 10/19/26

已订购: 120   可以发货 11/13/26

仅库存批次: 2

最小订购数量: 5

工厂交货期 22 周 可以发货 3/8/27

价格 (USD)

数量
单价
1
$13.101
5
$11.910
10
$11.730
40
$11.510
80
$11.200
120
$11.080
280
$11.060
520 +
$11.030
