AHDP04-24-29PR-BRA by amphenol sine systems
图片仅供参考 - 请查看制造商规格
Amphenol Sine Systems 授权经销商

AHDP04-24-29PR-BRA

29 Position Receptacle - Pin - Shell Size 24 - Reduced Diameter Seal (Blue) - Backshell Ring Adapter ...

查看数据表
符合 RoHS
BOX 包装
附件
请求编程报价
合规证书

描述

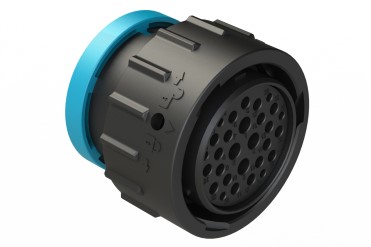

AHDP04-24-29PR-BRA is a DuraMate™ AHDP plastic circular connector receptacle designed for environmentally-sealed, multi-pin, heavy-duty applications in harsh-environment, off-road settings. The connector features Shell Size 24 with 9 positions, pin contacts, and a reduced diameter rear seal (red) with a backshell ring adapter (BRA) in green. It supports multiple contact sizes (Size 8, 12, and 16) with corresponding amperage ratings of 60A, 25A, and 13A respectively, and operates at 250V. The connector incorporates a circular bayonet locking system and is manufactured to withstand the challenges of agricultural and industrial applications, particularly those requiring ISO 11783 ISOBUS 91 Series compliance for control and communications between tractors, implements, and software systems.

搜索关键词: AHDP042429PRBRA

规格

产品属性
属性值
选择属性
找到的产品: 0
供应商:
Amphenol Sine Systems
部件编号:
AHDP04-24-29PR-BRA
计量单位:
每 Each
RoHS:
Yes
HTS:
8538908180
COO:
MX
ECCN:
EAR99
供应商标准包装: 此信息提供给偏好按制造商标准包装数量的倍数购买的客户。最小订购数量和要求的订购倍数会与我们的价格和库存信息一起显示。
50
封装类型:
BOX

常见问题

AHDP04-24-29PR-BRA 是否符合 RoHS 标准？

是的，AHDP04-24-29PR-BRA 符合 RoHS 标准。

AHDP04-24-29PR-BRA 的交货期是多少？

AHDP04-24-29PR-BRA 的标准交货期约为 14 天。有库存的数量由 Master Electronics 发货。

有存货: 120

可立即发货

制造商库存: 50   可以发货 9/7/26

最小订购数量: 5

工厂交货期 14 周 可以发货 11/30/26

价格 (USD)

数量
单价
5
$9.31
25
$8.71
50
$8.45
100
$7.72
250
$6.99
500
$6.19
1,000 +
$5.38
