F1051/2-BK008 by alpha wire
图片仅供参考 - 请查看制造商规格
Alpha Wire 授权经销商

F1051/2-BK008

The F1051/2-BK008 is a black, irradiated PVC heat shrinkable tubing for electrical insulation and protection. ...

查看数据表 询问数据表
符合 RoHS
包装
附件
请求编程报价
合规证书

描述

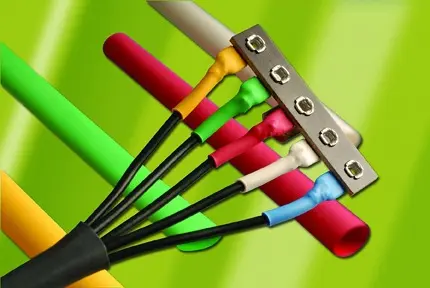

The F1051/2-BK008 is a heat shrinkable tubing constructed from black, irradiated Polyvinyl Chloride (PVC). It features a 2:1 shrink ratio, reducing from a minimum supplied internal diameter of 0.500 inches to a maximum recovered ID of 0.250 inches, with a nominal recovered wall thickness of 0.030 inches. This tubing operates across a temperature range of -20°C to 105°C and requires a minimum shrink temperature of 100°C for full recovery. Meeting UL, CSA, and AMS-DTL-23053/2 Class 1 specifications, it is ideal for various commercial and military applications requiring durable insulation, strain relief, and wire bundling.

搜索关键词: F10512BK008

规格

产品属性
属性值
选择属性
找到的产品: 0
供应商:
Alpha Wire
部件编号:
F1051/2-BK008
别名/又称:
F1051/2-BLACK-25, FIT1051/2-BLACK-25
计量单位:
每 Each
RoHS:
Yes
HTS:
3917320010
COO:
US
ECCN:
EAR99
供应商标准包装: 此信息提供给偏好按制造商标准包装数量的倍数购买的客户。最小订购数量和要求的订购倍数会与我们的价格和库存信息一起显示。
1
类型:
Tubing
本体材料:
Polyvinyl Chloride
收缩壁厚类型:
N/A
样式:
Straight
颜色:
Black

有存货: 3

可立即发货

已订购: 3   可以发货 9/24/26

工厂交货期 17 周

价格 (USD)

数量
单价
1
$92.87
5
$85.94
10
$83.45
20
$78.88
50
$76.77
100 +
$75.76
