892419-YL005 by alpha wire

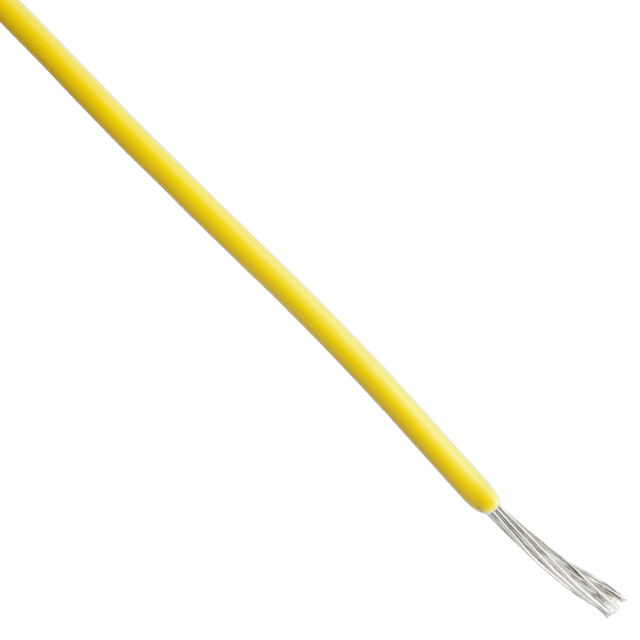

Image is representational - see mfr. specs

892419-YL005

Alpha Wire

Yellow - 30.48m (100ft)/Spool ...

产品说明书
符合 RoHS 规定
Reel 包装
附件
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

描述

The 892419-YL005 is a 24 AWG single-conductor hookup wire manufactured by Alpha Wire with a tinned copper conductor (19/36 stranding) and 0.016" nominal PVC insulation wall. It is rated for 300 V RMS at temperatures up to 105°C and complies with UL AWM Style 1569 and AWM 1007 standards, with VW-1 or FT1 flame ratings. The wire exhibits a nominal inductance of 0.07 µH/ft and a conductor DC resistance of 23.9 O/1000 ft at 20°C, with a maximum pull tension of 3.7 lbs and a minimum bend radius of 10 times the cable diameter. This wire is suitable for general-purpose interconnection, control circuits, and low-voltage applications in industrial and commercial equipment, and is available in multiple colors including yellow (YL005 designation) as well as white, black, red, green, blue, brown, orange, slate, and violet.

Search Keywords: 892419YL005

规格

Product Attribute
Attribute Value
Select Attribute
Products found: 0
供应商:
Alpha Wire
部件编号:
892419-YL005
Alias/AKA:
892419-YELLOW-100
计量单位:
Per Each
RoHS:
Yes
HTS:
8544700000
COO:
MX
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
1
Package Type:
Reel
Size:
24 AWG
Bunch Stranding:
19x36
Conductor Material:
Tinned Copper
Cable Diameter:
1.49 mm
Maximum Voltage Rating:
300 VAC
Operating Temperature:
-40 to 105 °C
Color:
N/R

有存货: 11

Ships today, if you order in

工厂交货期 10 周

PRICE (USD)

数量
Unit Price
1
$32.40
5
$30.34
10
$29.45
25
$28.28
50
$27.39
100
$26.50
250 +
$25.33
