5610B2201-NC005 by alpha wire

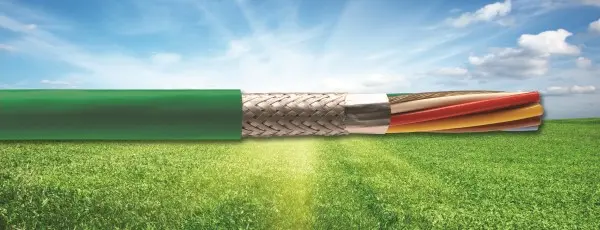

Image is representational - see mfr. specs

5610B2201-NC005

Alpha Wire

The 5610B2201-NC005 is a shielded, single-pair 22 AWG communication and control cable with a PVC jacket. ...

产品说明书
符合 RoHS 规定
包装
附件
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

描述

The 5610B2201-NC005 is a shielded, single-pair 22 AWG communication and control cable. It is constructed with two stranded bare copper conductors, PVC insulation, and an overall aluminum/mylar tape shield with a tinned copper drain wire to minimize electrical noise. The cable has a nominal characteristic impedance of 47 Ω and a voltage rating of 300 VRMS. A durable black PVC jacket provides protection, allowing for an operating temperature range of -20°C to 105°C. This cable is rated as UL Type PLTC and c(UL) Type CMG, making it suitable for power-limited tray applications and general communication wiring.

Search Keywords: 5610B2201NC005

规格

Product Attribute
Attribute Value
Select Attribute
Products found: 0
供应商:
Alpha Wire
部件编号:
5610B2201-NC005
Alias/AKA:
5610B2201-NO-COLOR-100
计量单位:
Per Each
RoHS:
Yes
HTS:
8544493080
COO:
US
ECCN:
EAR99
供应商标准包装: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Number of Conductors:
2
Conductor Material:
Bare Copper
Cable Length:
30.48 m
Maximum Current Rating:
N/A
Type:
Shielded Twisted Pair Cable
  Different packaging options available.  See Alternatives

有存货: 5

可立即发货

工厂库存: 3   可以发货 5/18/26

工厂交货期 11 周 可以发货 7/20/26

数量
Unit Price
1
$113.53
5
$105.60
10
$102.75
20
$97.52
50
$95.12
100 +
$93.96
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

产品指南
