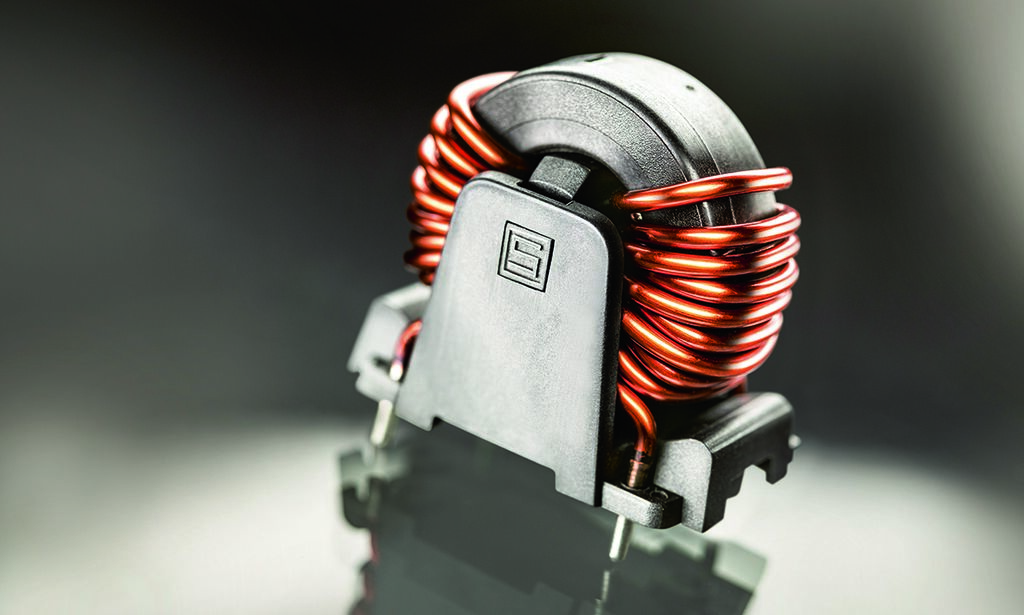

SCHURTER DKIV-1 Series - Vertical Mount, Common Mode Chokes - High Current THT Choke, Single Phase

The DKIV-1 Series are compact high current chokes with choice of performance using nanocrystalline or ferrite ring cores. The series features an open frame design for optimized heat dissipation, and is particularly suitable for applications with frequency converters, charge stations, USP-systems, and switching power supplies.

  • Rated voltage: IEC, UL: 300 VAC, CSA: 250 VAC (400Hz max) , 450 VDC
  • Rated Current: 10 - 50 A @ Ta 40 °C
  • Allowable Operation Temperature: -40 °C to 100 °C
  • Rated inductance: 0.15 - 8.2 mH, Tol. -30% +50%
  • Nanocrystalline core options for higher performance
  • Approvals and Compliances: c-UR-us, ENEC , CE, UKCA
See More
Show products manufactured by Schurter
授权经销商
访问网站
Information
产品规格范围 在线聊天 技术支持
产品指南

8 PRODUCT RESULTS FOR ""

Filter Results

8 PRODUCTS

    3-127-620
    产品说明书
    3-127-620 Schurter
    DKIV-1 COMP. CHOKE 2PH 10A 8.2mH
    查看产品
    27 WEEKS
    5
    $18.98
    10
    $18.11
    40
    $17.57
    80
    $16.81
    120
    $16.12
    3-127-621
    产品说明书
    3-127-621 Schurter
    DKIV-1 COMP. CHOKE 2PH 12A 7.2mH
    查看产品
    MANUFACTURER STOCK 40
    Ships 5/4/26
    5
    $20.08
    10
    $19.15
    40
    $18.58
    80
    $17.79
    120
    $17.05
    3-127-622
    产品说明书
    3-127-622 Schurter
    The 3-127-622 is a 1-phase, current-compensated suppression choke featuring a nanocrystalline core and through-ho ...
    查看产品
    27 WEEKS
    10
    $26.28
    20
    $19.71
    30
    $18.40
    40 +
    $18.03
    3-127-623
    产品说明书
    3-127-623 Schurter
    DKIV-1 COMP. CHOKE 2PH 20A 3.7mH
    查看产品
    27 WEEKS
    10
    $27.92
    20
    $20.94
    30
    $19.54
    40 +
    $19.15
    3-127-624
    产品说明书
    3-127-624 Schurter
    DKIV-1 COMP. CHOKE 2PH 25A 1.8mH
    查看产品
    27 WEEKS
    10
    $28.74
    20
    $21.55
    30
    $20.12
    40 +
    $19.72
    3-127-625
    产品说明书
    3-127-625 Schurter
    DKIV-1 COMP. CHOKE 2PH 32A 7.2mH
    查看产品
    27 WEEKS
    1
    $25.95
    5
    $24.27
    20
    $22.46
    40
    $21.81
    60
    $21.50
    3-127-626
    产品说明书
    3-127-626 Schurter
    DKIV-1 COMP. CHOKE 2PH 40A 4.3mH
    查看产品
    27 WEEKS
    1
    $26.66
    5
    $24.94
    20
    $23.07
    40
    $22.41
    60
    $22.09
    3-127-627
    产品说明书
    3-127-627 Schurter
    DKIV-1 COMP. CHOKE 2PH 50A 1.4mH
    查看产品
    27 WEEKS
    1
    $29.48
    5
    $27.58
    20
    $25.52
    40
    $24.78
    60
    $23.42
