1765-1 by winchester/kings

1765-1

Winchester/Kings

Coaxial Plug, HV - 20Kv - Brass - Male - Front Mt - Crimp Contact ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

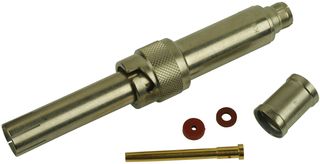

The 1765-1 is a weatherproof, 20KV rated, front mountable, brass, male coaxial plug, with a gold-plated BeCu center crimp contact. It provides a high-voltage interface ideally suited for pulse applications. Designed for use where the normal operating voltage of standard coaxial connectors is inadequate. The impedance is non-constant. For use with RG-8, 8A, 11, 11A, 213/U Cable.

Search Keywords: 17651

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Winchester/Kings
Part No:
1765-1
RoHS:
Yes
HTS:
8535908040
COO:
MX
ECCN:
EAR99
Supplier Standard Pack  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Type:
Coaxial
Impedance:
N/A
Operating Frequency:
N/A
Gender:
PL
Mounting:
Cable Mount
Body Orientation:
Straight
Terminate To:
Coaxial Cable
Termination Method:
Crimp
Operating Temperature:
N/A
Dimension:
114.8 x 19.05 mm

IN STOCK: 319

Can Ship immediately

MOQ for out of Stock Qty: 13

Factory Lead-Time 17 Weeks

Qty
Unit Price
1
$172.72
5
$156.56
10
$155.78
13
$155.00
25
$154.22
38
$153.45
50 +
$152.68
