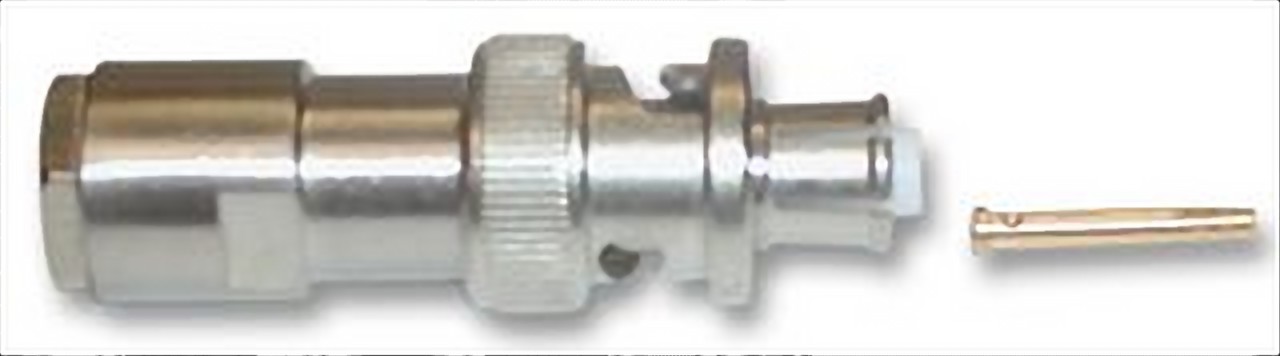

1705-14 by winchester/kings

1705-14

Winchester/Kings

RF Coaxial SHV Plug Straight Male - 300 MHz - Nickel ...

Datasheet
RoHS Non-Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

1705-14 is a straight, male, SHV bulkhead jack with a frequency of 300MHz. Nominal impedance is non-constant and voltage rating is 3500Vrms. Insulator is made of teflon; gasket is silicone rubber; spring washer and outer/center contacts are berrylium copper; all other metal parts are brass. Center contact is in gold plating finish;spring washer is silver plated; and all other metal parts are in Kings tarnish resistant finish. This product has quick connect & disconnect bayonet coupling design. Outer contact ground connection is maintained through the center contact mating cycle. Recessed center contacts prevent shock hazards while unmated.

Search Keywords: 170514

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Winchester/Kings
Part No:
1705-14
RoHS:
No
HTS:
8536694010
COO:
MX
ECCN:
EAR99
Supplier Standard Pack  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
SHV
Impedance:
N/A
Operating Frequency:
N/A
Gender:
PL
Mounting:
Cable Mount
Body Orientation:
Straight
Terminate To:
Coaxial Cable
Termination Method:
N/A
Operating Temperature:
N/A
Dimension:
46.73 x 13.97 mm

IN STOCK: 2

Can Ship immediately

On Order: 250   can ship 12/22/25

MOQ for out of Stock Qty: 25

Factory Lead-Time 9 Weeks

Qty
Unit Price
1
$52.01
5
$51.23
10
$48.82
25
$48.09
50
$47.36
75
$46.65
100 +
$45.95
Suppliers Standard Package
Log in for special pricing
