72.300.2453.0 by wieland electric

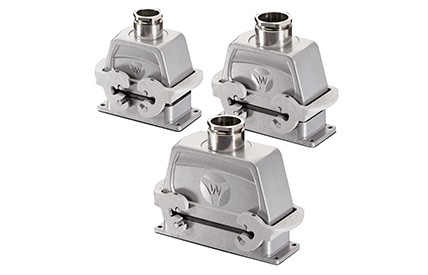

Image is representational - see manufacturer specifications
Wieland Electric Authorized Distributor

72.300.2453.0

Conn Rectangular F 24Signal/1Ground POS Screw ST Cable Mount ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The 72.300.2453.0 is a 24-pole modular industrial multipole connector insert designed for intrinsic safety applications (EEx ia). It features screw connection terminals rated for 16 A continuous current with wire cross-sections from 0.5 to 2.5 mm² (20–12 AWG) and a wire strip length of 7 mm. The connector is housed in a closed-bottom housing with mounting dimensions of L5 = 132 mm and L6 = 45 mm, utilizing M 5 mounting threads with a 5.5 mm hole diameter. This connector is commonly used in hazardous location installations, intrinsically safe control systems, and industrial automation where reliable multipole signal and power distribution is required in explosive atmospheres.

Search Keywords: 7230024530

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Wieland Electric
Part No:
72.300.2453.0
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536690090
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Type:
Rectangular
Mounting:
Cable Mount
Body Orientation:
Straight
Gender:
PL
Pitch:
N/A
Termination Method:
Screw
Number of Contacts:
24Signal/1Ground
Maximum Voltage Rating:
690 V
Maximum Current Rating:
16 A
Operating Temperature:
-40 to 110 °C

FREQUENTLY ASKED QUESTIONS

Is 72.300.2453.0 RoHS compliant?

Yes, 72.300.2453.0 is RoHS compliant.

What is the lead time for 72.300.2453.0?

The standard lead time for 72.300.2453.0 is approximately 3 days. In-stock quantities ship from Master Electronics.

IN STOCK: 20

Can Ship immediately

Minimum Order Quantity: 10

Multiple: 10

Factory Lead-Time 3 Weeks

Price (USD)

Qty
Unit Price
10
$18.55
30
$18.00
50
$17.48
100
$16.52
250
$16.08
500
$15.87
1,000 +
$15.46
