USTF120381152T by u.s. toyo fan

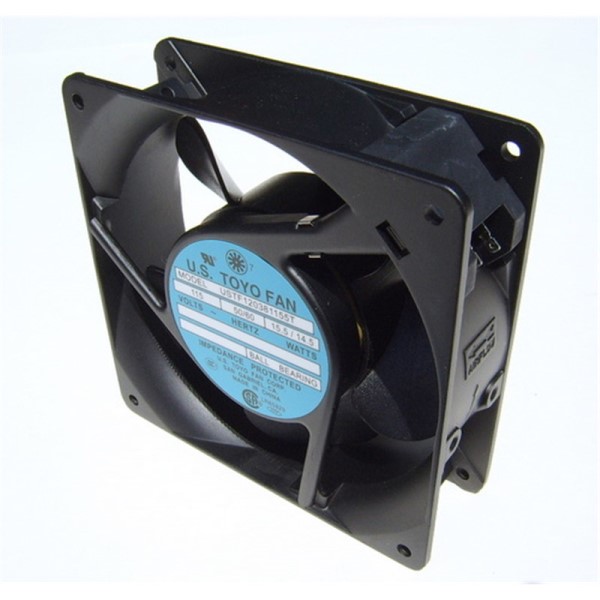

Image is representational - see manufacturer specifications
U.S. TOYO Fan Authorized Distributor

USTF120381152T

AC Fan - 120 x 38mm - 115 VAC - 1950 RPM - Terminal ...

View Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

USTF120381152T is an AC / Ball Bearing Fans from US Toyo Fan. It has an airflow of 76 CFM, Acoustical Noise of 30 dB (A) , RPM of 1950. The frames are aluminum alloy in black finish painting, bearings are dual shielded ball, and impeller are made UL94V-0 Plastic (Reinforced). It measures 4.69 in. sq x 1.5 in. thick (120mm sq x 38mm thick), and weighs 19.4 oz (550g). The fan operates at 115VAC (75VAC min), at a temperature range of -10° to + 70° C. Its insulation is Class A with a resistance of 100,000 Ohm min @ 500 VDC and dielectric strenght of 500 VAC for 1 minute. Termination are through terminals. The fans meets UL, CSA, and CE and impedance protected. All fans are designed and manufactured to prevent "burn-out" failure caused by restriction of rotating parts

Search Keywords: USTF120381152T

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
U.S. TOYO Fan
Part No:
USTF120381152T
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8414596090
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Category:
AC Fan
Dimension:
119 x 119 x 38 mm
Voltage Rating:
115 V
Power Rating:
7 W
Maximum Airflow:
76 CFM
Noise Level:
30 dB
Special Features:
None
Termination:
Terminals
Housing Material:
Aluminum Alloy
Operating Temperature:
-40 to 70 °C

FREQUENTLY ASKED QUESTIONS

Is USTF120381152T RoHS compliant?

Yes, USTF120381152T is RoHS compliant.

What is the lead time for USTF120381152T?

The standard lead time for USTF120381152T is approximately 18 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 62

Can Ship immediately

Factory Lead-Time 18 Weeks

Price (USD)

Qty
Unit Price
1
$38.84
10
$34.65
30
$30.67
50
$27.19
100
$23.73
250
$23.09
500 +
$22.75
Supplier's Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides
