RE267

Sta-Con® Nylon-Insulated Large Ring Terminal - Wire Size #6AWG - Material Copper - Tin-Plated Finish - Color Blue - Bolt Hole #10 - Voltage Rated 600V ...

Datasheet

RoHS Compliant

Certificate of Compliance Guarantee

DESCRIPTION

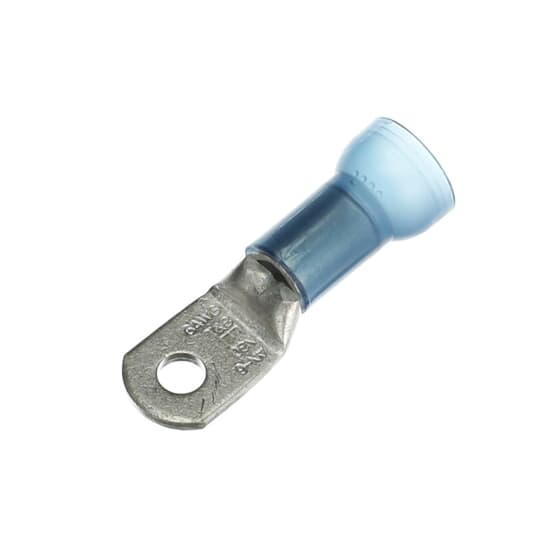

The RE267 is a large ring terminal insulated with high dielectric-strength nylon for wire size #6 AWG. These ring terminals have funneled barrel entry, deep internal serrations, and brazed or overlapping seams. Length 1.65 inches, .49 inches width, maximum insulation .420 inches, bolt hole #10. The terminal is high-conductivity electrolytic copper, electro-tin plated, with color-coded insulation, rated for 105°C max temperature. Installing tool ERG4007.

Product Highlights:

Potential Applications:

Search Keywords: RE267

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Thomas & Betts

Part No:

RE267

RoHS:

Yes

HTS:

8536904000

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
