RC364

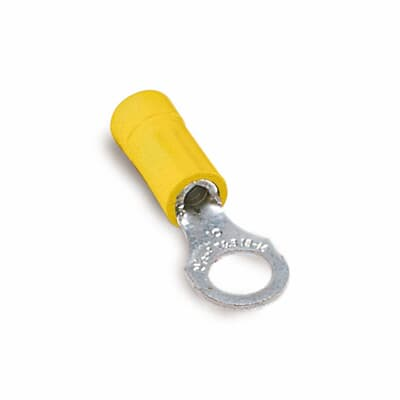

Name: RC364 Thomas Betts Ring Lug
Brand: Thomas Betts
SKU: 12673801
Availability: InStock

Sta-Con® Nylon-Insulated Ring Terminal - Wire Range #12-#10AWG - Material Copper - Tin-Plated Finish - Color Yellow - Bolt Hole #10 - Expanded Entry ...

View Datasheet Ask the Datasheet

RoHS Compliant

Certificate of Compliance

DESCRIPTION

The RC364 is a ring terminal insulated with high dielectric-strength nylon for wire range #12 - #10 AWG. This terminal has expanded entry. This means a wider wire entry to accommodate heavy wall insulation. Ring terminals won't fall free even if the mounting screw loosens. Length 1.10 inches, .37 inches width, maximum insulation .250 inches, bolt hole #10. The terminal is high-conductivity electrolytic copper, electro-tin plated, with color-coded insulation. Recommended tool ERG4001.

Product Highlights:

Potential Applications:

Search Keywords: RC364

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Thomas & Betts

Part No:

RC364

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536904000

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
