RAS18-8X

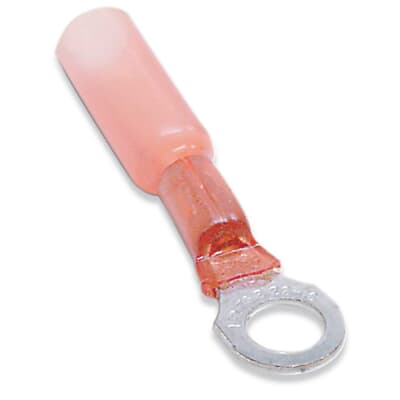

Name: RAS18-8X Thomas Betts Ring Lug
Brand: Thomas Betts
SKU: 12673332
Availability: InStock

Sta-Con® Heat Shrinkable Ring Terminal - Wire Range #22-#18AWG - Material Copper - Tin-Plated Finish - Color Red - Bolt Hole #8 - Voltage Rating 600V ...

View Datasheet Ask the Datasheet

RoHS Compliant

Certificate of Compliance

DESCRIPTION

The RAS18-8X is a ring terminal for wire range #22 - #18 AWG. These terminals are self-insulated with heat-shrinkable polyolefin and internally coated sealant. Upon completed installation, a fully sealed connection protects the joint against the degrading effects of galvanic action, corrosion, and environmental exposure - length 1.26 inches, width .31 inches, bolt hole #8, and maximum insulation .170 inches. The ring terminal is made of high-conductivity electrolytic copper, electro-tin plated. They recommended tool ERG4255.

Product Highlights:

Potential Applications:

Search Keywords: RAS188X

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Thomas & Betts

Part No:

RAS18-8X

Unit of Measure:

Per Each

RoHS:

Yes

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
