RA853 by thomas - betts
Image is representational - see manufacturer specifications
Thomas & Betts Authorized Distributor

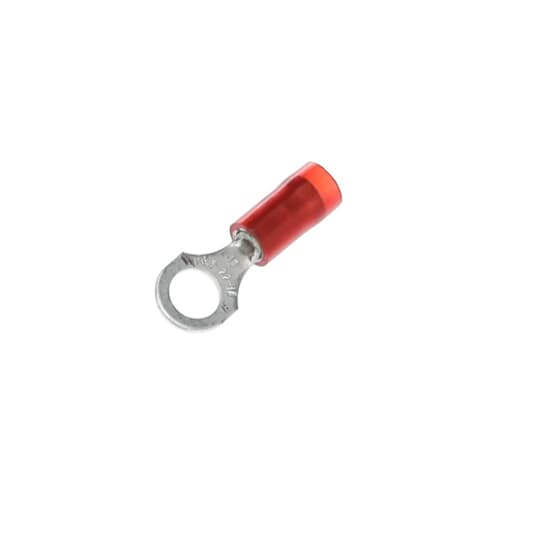

RA853

Sta-Con® Nylon-Insulated Ring Terminal - Wire Range #22-#16AWG - Material Copper - Tin-Plated Finish - Color Red - Bolt Hole #6 ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The RA853 is a ring terminal insulated with high dielectric-strength nylon for wire range #22 - #16 AWG. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. Length .86 inches, .26 inches width, maximum insulation .136 inches, bolt hole #6. The terminal is high-conductivity electrolytic copper, electro-tin plated, with color-coded insulation. Recommended tool ERG2006.

Search Keywords: RA853

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Thomas & Betts
Part No:
RA853
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1000

FREQUENTLY ASKED QUESTIONS

Is RA853 RoHS compliant?

Yes, RA853 is RoHS compliant.

What is the lead time for RA853?

The standard lead time for RA853 is approximately 6 days. In-stock quantities ship from Master Electronics.

  Different packaging options available.  See Alternatives

IN STOCK: 18,543

Can Ship immediately

Minimum Order Quantity: 50

Factory Lead-Time 6 Weeks

Price (USD)

Qty
Unit Price
50
$0.973
500
$0.859
1,000
$0.853
3,000
$0.849
5,000
$0.847
8,000
$0.845
10,000
$0.842
15,000 +
$0.840
Supplier's Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Accessories

WT145A

Heavy Duty Hand Tool for Crimping RA, RAX, RB, RBC, RC Nylon Insulated Terminals
