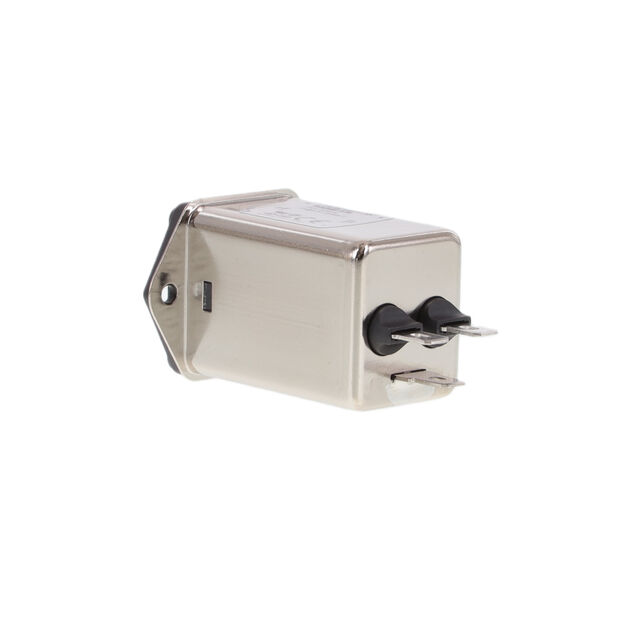

FN9266A-6-06 by te connectivity / schaffner emc
Image is representational - see mfr. specs

FN9266A-6-06

TE Connectivity / SCHAFFNER EMC

PWR ENT MOD RCPT IEC320-C14 PNL ...

Datasheet
RoHS Compliant
Box Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 819983-SF is a high-performance power entry module with integrated EMI filter and switch, designed for applications requiring both power distribution and electromagnetic interference suppression. This device features a rated current capacity of up to 10 A at 40°C, operates at 250 VAC 50/60 Hz, and supports operating frequencies from DC to 400 Hz. The module includes a high-quality 2-pole rocker switch and offers multiple configuration options including standard, safety (A-type), and medical (B-type) versions. Key electrical characteristics include leakage current of 0.31 mA (standard) or 0.07 mA (safety version) at 250 VAC/50 Hz, with capacitance values of 0.15 µF (Cx) and 2.2 nF (Cy) for standard versions. The device is commonly used in medical equipment, industrial power supplies, and consumer electronics where EMC compliance and integrated switching functionality are required.

Search Keywords: FN9266A606

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / SCHAFFNER EMC
Part No:
FN9266A-6-06
Alias/AKA:
819983-SF
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694030
COO:
TH
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
60
Package Type:
Box

IN STOCK: 80

Can Ship immediately

MOQ for In Stock Qty: 5

MOQ for out of Stock Qty: 5

Factory Lead-Time 13 Weeks

Price (USD)

Qty
Unit Price
5
$23.81
10
$23.75
15
$23.68
30
$17.76
45
$16.58
60 +
$16.25
Suppliers Standard Package
