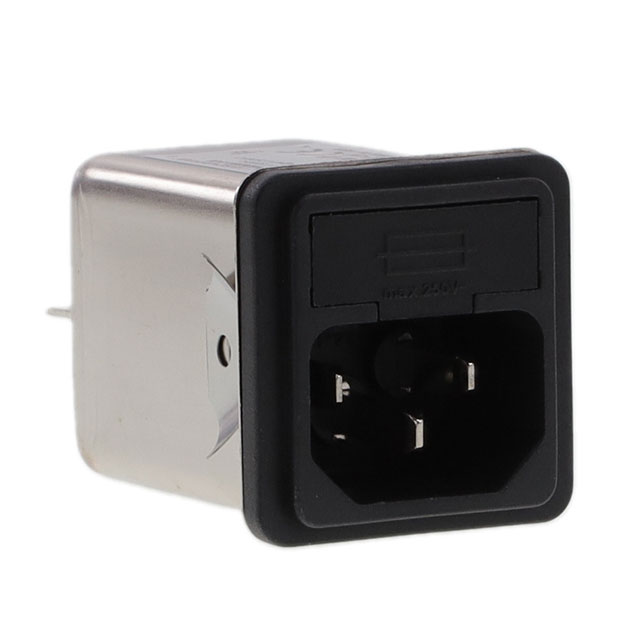

FN9262SA-6-06 by te connectivity / schaffner emc
Image is representational - see mfr. specs

FN9262SA-6-06

TE Connectivity / SCHAFFNER EMC

PWR ENT MOD RCPT IEC320-C14 PNL ...

Datasheet
RoHS Compliant
Box Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 819958-SF is an IEC inlet filter module (FN 9262 series) designed as a high-performance power entry module with integrated dual fuse holder for EMI/RFI suppression. It operates at 250 VAC, 50/60 Hz with rated currents from 1 to 10 A at 40°C maximum, featuring operating frequency range from DC to 400 Hz and high potential test voltage of 2000 VAC (P to PE for 2 seconds on standard types). The module incorporates X and Y capacitors, inductance, and resistor networks for differential and common-mode attenuation, with leakage current specifications of 0.31 mA at 250 VAC/50 Hz (standard types) or 0.07 mA (safety types). It complies with IEC/EN 60601-1 medical standards, UL 60939-3, and features UL 94 V-0 flammability rating for both inlet and fuseholder plastics. This filter is ideal for medical devices, industrial power supplies, and equipment requiring reliable EMC performance and safety compliance in harsh electrical environments.

Search Keywords: FN9262SA606

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / SCHAFFNER EMC
Part No:
FN9262SA-6-06
Alias/AKA:
819958-SF
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694030
COO:
TH
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
60
Package Type:
Box

IN STOCK: 80

Can Ship immediately

MOQ for In Stock Qty: 5

MOQ for out of Stock Qty: 5

Factory Lead-Time 13 Weeks

Price (USD)

Qty
Unit Price
5
$20.52
10
$20.47
15
$20.42
30
$15.32
45
$14.29
60 +
$14.00
Suppliers Standard Package
