FN9262SA-2-06
TE Connectivity / SCHAFFNER EMCPWR ENT MOD RCPT IEC320-C14 PNL ...
DESCRIPTION

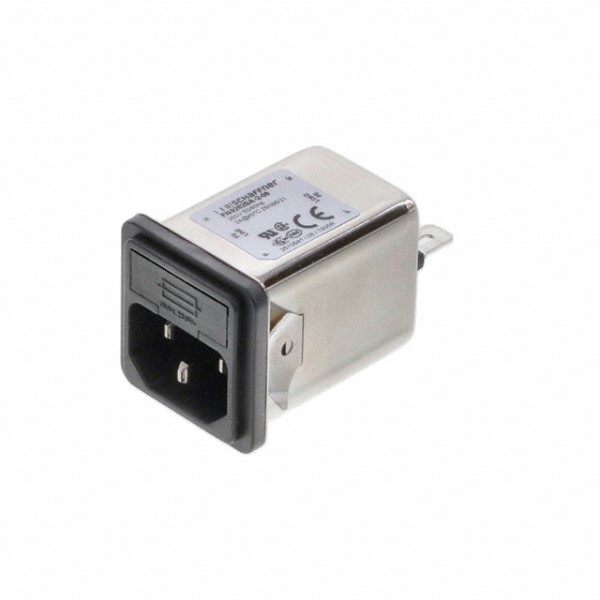

The 819956-SF is an IEC inlet filter module designed for high-performance power entry applications with integrated dual fuse holder capability. It operates at 250 VAC, 50/60 Hz with rated currents ranging from 1 to 10 A at 40°C maximum, and supports operating frequencies from DC to 400 Hz. The module features good EMI/EMC attenuation performance across differential and common modes, with leakage current specifications of 0.31 mA (0.18 mA at 120 VAC/60 Hz) for standard types and 0.07 mA (0.04 mA) for safety versions. It complies with IEC/EN 60601-1 medical standards and includes optional safety (A type) and medical (B type) versions with snap-in mounting options. The device is suitable for medical equipment, industrial power supplies, and other applications requiring reliable EMI filtering and fuse integration with IP40 protection rating and operation across -25°C to +85°C temperature range.
Search Keywords: FN9262SA206
SPECIFICATIONS
IN STOCK: 80
Ships today, if you order in
MOQ for In Stock Qty: 5
MOQ for out of Stock Qty: 5
Factory Lead-Time 13 Weeks
Datasheet
