DESCRIPTION

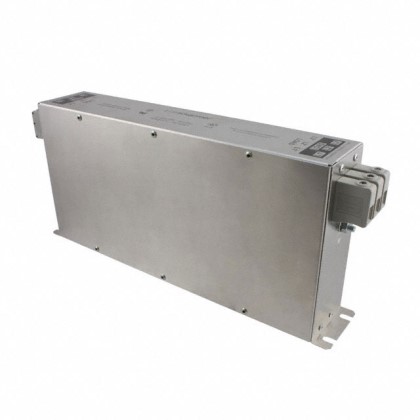

The 806080-SF is a three-phase EMC/RFI filter designed for inverters and power drive systems, featuring a slim space-saving book-style housing that meets industry standards for three-phase power distribution system (PDS) filtering. It operates at maximum continuous voltages of 3×520/300 VAC with rated currents ranging from 7 to 250 A at 50°C, and supports operating frequencies from DC to 60 Hz with excellent attenuation performance. The filter incorporates solid safety connector blocks or optional wire output connections, operates across a temperature range of -25°C to +100°C, and achieves an MTBF of 220,000 hours at 50°C/400 V per MIL-HB-217F. This solution is ideal for industrial power conditioning applications requiring reliable EMC compliance and compact installation in space-constrained environments.
