FN2090LL-20-08 by te connectivity / schaffner emc

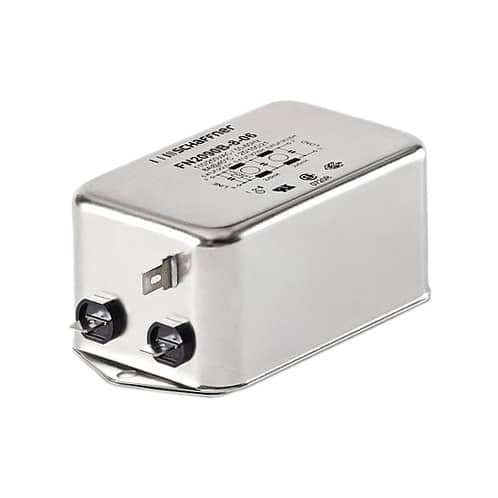

Image is representational - see mfr. specs

FN2090LL-20-08

TE Connectivity / SCHAFFNER EMC

The FN2090LL-20-08 is a high-performance, two-stage AC/DC EMI filter with a rated current of 20A, designed for chassis mounting. ...

Datasheet
RoHS Compliant
Box Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The FN2090LL-20-08 is a high-performance, two-stage EMI filter designed to provide very high differential and common-mode attenuation for noisy applications. It operates with a rated current of 20A at 40°C and a rated voltage of 250 VAC/VDC across a frequency range of DC to 400 Hz. This enhanced performance 'LL' version features an inductance of 2.7 mH, a 1 µF X-capacitor, and dual 33 nF Y-capacitors, with M4 stud terminals for secure connections. It is well-suited for industrial applications, machinery, electronic data processing equipment, and other demanding environments requiring exceptional filter performance.

Search Keywords: FN2090LL2008

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / SCHAFFNER EMC
Part No:
FN2090LL-20-08
Alias/AKA:
817085-SF
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8504508000
COO:
TH
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Package Type:
Box

IN STOCK: 28

Can Ship immediately

On Order: 50   can ship 9/28/26

MOQ for out of Stock Qty: 3

Factory Lead-Time 15 Weeks

Price (USD)

Qty
Unit Price
1
$98.41
3
$97.27
5
$97.03
8
$88.39
10 +
$71.42
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
