FN2080-6-07 by te connectivity / schaffner emc

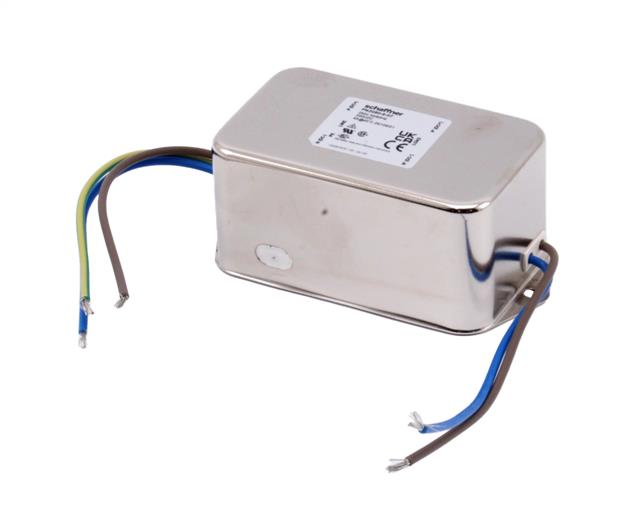

Image is representational - see mfr. specs

FN2080-6-07

TE Connectivity / SCHAFFNER EMC

The FN2080-6-07 is a two-stage, chassis-mount EMI filter with a rated current of 6A designed for high-performance attenuation. ...

Datasheet
RoHS Compliant
Box Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The FN2080-6-07 is a two-stage EMI filter designed to provide high conducted attenuation performance. It operates with a rated current of 6A at 40°C, a maximum operating voltage of 250 VAC, and across a frequency range from DC to 400 Hz. Key electrical characteristics for this model include an inductance of 7.8 mH, a Cx capacitance of 1 µF, and a leakage current of 0.734 mA. This filter features AWG 18 wire connections and is suitable for noisy applications requiring good filter performance, such as industrial machinery, medical equipment, and electronic data processing systems.

Search Keywords: FN2080607

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / SCHAFFNER EMC
Part No:
FN2080-6-07
Alias/AKA:
800632-SF
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8504508000
COO:
TH
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Package Type:
Box
Mounting:
Flange Mount
Maximum Voltage Rating:
250 VAC
Maximum Current Rating:
6 A
Operating Frequency:
0 to 400 Hz
Operating Temperature:
-25 to 100 °C
Dimension:
57.5 x 113.5 x 45.4 mm

IN STOCK: 0

MOQ for out of Stock Qty: 5

Factory Lead-Time 15 Weeks

Price (USD)

Qty
Unit Price
5
$68.39
10
$61.62
15
$60.28
20 +
$50.06
