99M0111-22-4 by te connectivity / raychem brand

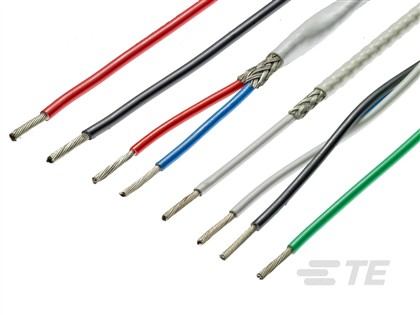

Image is representational - see manufacturer specifications
TE Connectivity / Raychem Brand Authorized Distributor

99M0111-22-4

Customer Drawing ...

View Datasheet Ask the Datasheet
RoHS Compliant
REEL Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The TE Connectivity / Raychem brand part 99M0111-22-4 is a high-quality component designed for advanced applications requiring reliable performance and durability. This part is engineered with precision and adheres to stringent industry standards, making it suitable for a wide range of industrial and commercial uses. The detailed customer drawing for this part ensures exact specifications and dimensional accuracy, providing users with confidence in their application. This component is crafted to meet the specific needs of engineers and designers who demand excellence in their projects. Whether used in aerospace, automotive, or electronics, the TE Connectivity / Raychem 99M0111-22-4 promises exceptional functionality and long-lasting resilience.

Search Keywords: 99M0111224

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Raychem Brand
Part No:
99M0111-22-4
Alias/AKA:
6036953001
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8544493080
COO:
GB
ECCN:
EAR99
Reel Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
REEL
Strand Size:
34 AWG
Voltage Rating:
600 V
Product Classification:
Cable - Spec 99 & 100
Cable Type:
Spec 99M
Wire Size:
22 AWG, .33 mm²
Wire Color:
Yellow
Number of Strands:
19
Number of Conductors:
1
Wire Source:
United Kingdom
Wire Diameter:
.041 in, 1.05 mm
Conductor Material:
Tin-Plated Copper
Cable Insulation Thickness:
.006 in, .15 mm
Overall Outside Diameter:
.0473 in, 1.2 mm
Insulation Thickness:
.006 in, .15 mm
Operating Temperature Range:
-65 – 125 °C
Conductor Diameter:
.031 in, .79 mm
Insulation Material:
Radiation-Crosslinked, Modified Polyester
Product Type:
Wire Lead
Cable Style:
Primary

FREQUENTLY ASKED QUESTIONS

Is 99M0111-22-4 RoHS compliant?

Yes, 99M0111-22-4 is RoHS compliant.

What is the lead time for 99M0111-22-4?

The standard lead time for 99M0111-22-4 is approximately 14 days. In-stock quantities ship from Master Electronics.

IN STOCK: 0

MOQ for out of Stock Qty: 1641

Factory Lead-Time 14 Weeks

Price (USD)

Qty
Unit Price
1,641
$1.399
3,281
$0.741
4,922
$0.521
6,562 +
$0.511
Log in for special pricing Click for Quote Price Match Request
