55PC1131-16-9/93/96-9 by te connectivity / raychem brand

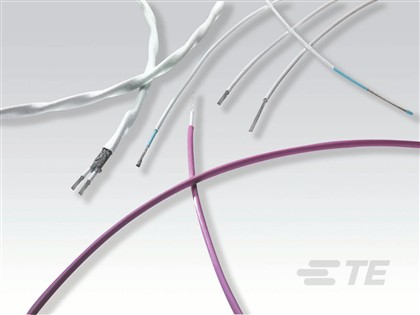

Image is representational - see manufacturer specifications
TE Connectivity / Raychem Brand Authorized Distributor

55PC1131-16-9/93/96-9

55PC1131-16-9/93/96-9 ...

View Datasheet Ask the Datasheet
RoHS Compliant
BAG Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The TE Connectivity / Raychem brand part 55PC1131-16-9/93/96-9 is a high-quality, reliable connector designed for use in various electrical applications. This versatile connector features a durable construction and is compatible with a wide range of wire sizes. Trust TE Connectivity / Raychem for all your electrical connector needs.

Search Keywords: 55PC113116993969

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Raychem Brand
Part No:
55PC1131-16-9/93/96-9
Alias/AKA:
557053-000
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8544493080
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
BAG
Voltage Rating:
600 V
Product Classification:
High Performance - Spec 44, 55 & RCW
Wire Source:
United States
Wire Size:
16 AWG
Wire Color:
WT, WT w/OR Stripe, WT w/BL Stripe
Overall Outside Diameter:
4.5 mm
Number of Conductors:
3
Conductor Material:
Tin-Coated Copper
Wire Diameter:
.0665 in
Cable Type:
Spec 55
Jacket Color:
White
Shield Size:
38 AWG
Operating Temperature Range:
-65 – 150 °C
Cable Style:
Round Braided Shielded & Jacketed
Shield Material:
Tin-Plated Copper
Cable Shield Size:
38 AWG
Insulation Material:
Modified Radiation Cross-linked ETFE Polymer
Product Type:
Wire Lead

FREQUENTLY ASKED QUESTIONS

Is 55PC1131-16-9/93/96-9 RoHS compliant?

Yes, 55PC1131-16-9/93/96-9 is RoHS compliant.

What is the lead time for 55PC1131-16-9/93/96-9?

The standard lead time for 55PC1131-16-9/93/96-9 is approximately 20 days. In-stock quantities ship from Master Electronics.

IN STOCK: 2,322

Can Ship immediately

MOQ for In Stock Qty: 5

MOQ for out of Stock Qty: 876

Factory Lead-Time 20 Weeks

Price (USD)

Qty
Unit Price
5
$8.39
250
$5.24
500
$5.19
876
$5.14
1,751
$5.09
2,626
$5.04
3,501 +
$4.99
